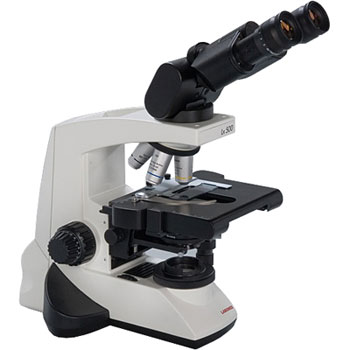

LABOMED Lx500 RESEARCH MICROSCOPE

Products Catalog» Microscopes» BIOMEDICAL Compound» LABOMED Lx500 RESEARCH MICROSCOPE

Products Catalog» Microscopes» ERGONOMIC microscopes» LABOMED Lx500 RESEARCH MICROSCOPE

Products Catalog» MICROSCOPES by SPECIALTY» Viticulture / Wine Making» LABOMED Lx500 RESEARCH MICROSCOPE



Labomed LX500 ergonomic research microscope, biomedical inspection, fluorescence, Epi-fluorescence, phase contrast, polarizing, dark field microscopy

GENERAL FEATURES:

• RP2 DIN Infinity Plan Achro Objectives
- New MaxLite™ coated, antifungal
- Parfocal and parcentral
- Infinity Corrected

• Ergonomic Binocular observation head models
- 0-25˚ adjustable tilt range
- Extra-wide field F.N 22 eyepieces

 • Flip-top ABBE substage NA 1.25 condenser
- Aspheric lense with diaphragm iris

• Quintuple Reverse angle nosepiece

• True KOEHLER illumination options
- LED with integrated Li-Ion battery
- 6 volt 30 watt halogen

• Universal (110-240vac) charger / adapter

• Mechanical XY stage 200mm x 160mm
- CERAMIC coated, double slide holder
- 76mm x 40mm travel
- Rack-less design x-axis

• LED, EPI-Fluorescence, Phase Contrast, POL, DF options

• Dimensions(mm): 291 L x 227 W x 375 H

• Manufacturer: Labomed (Labo America)

Labomed Lx500 ERGONOMIC Research Microscope:


The Labomed Lx500 microscope series represents the new generation of high value microscopes for research laboratory applications. The Lx500 is built on a robust aluminum frame with an emphasis on ergonomics. The ERGONOMIC binocular observation head features 0-25˚ of user tilt adjustment for greatly increased user comfort and provides a very wide field of view with the adjustable F.N 22 high brightness eyepieces.


The Lx500 microscope features 'TRUE' full KOEHLER illumination systems configured in either a traditional 6v/30w halogen or high output LED with built-in rechargeable battery for the additional flexibilty of cordless operation. Both illumination models feature integrated universal AC input power supplies for worldwide use. The new generation infinity corrected RP Plan optics have been further refined to provide superior color and contrast. The Labomed Lx500 microscope is available with a wide range of options including EPI-Fluorescence, phase contrast, darkfield, polarized light, and dual-training heads.


MODELS:


  Labomed QUICKORDER CONFIGURATIONS: (Pre-configured Models)



9144000: Labomed Lx500 Ergonomic Binocular 4/10/40/100
MSRP: $2,498.00
Our Price:$1,955.00

- 0-25˚ Ergonomic binocular view head, 360˚ rotatable (9140300)
- WF10x/22 Eyepiece set (9140010)
- 4x /0.10 Infinity DIN Plan Achro RP Objective (9122005)
- 10x /0.25 DIN Infinity DIN Plan Achro RP Objective (9122010)
- 40x /0.65 DIN Infinity DIN Plan Achro RP Objective (9122040)
- 100x /1.25 DIN Infinity DIN Plan Achro RP Objective (9122100)
- 200mm x 160mm Ceramic Coated RacklessX mechanical stage
- Koehler  Illuminator  (6v 30watt halogen)
- Universal input (100-240VAC) power supply
- Includes: dust cover ,allen wrench, cleaning cloth, spare lamp & fuse







9144110: Labomed Lx500 Ergonomic LED Binocular 4/10/40/100
MSRP: $2,548.00
Our Price:$2,036.00

- 0-25˚ Ergonomic binocular view head, 360˚ rotatable (9140300)
- WF10x/22 Eyepiece set (9140010)
- 4x /0.10 Infinity DIN Plan Achro RP Objective (9122005)
- 10x /0.25 DIN Infinity DIN Plan Achro RP Objective (9122010)
- 40x /0.65 DIN Infinity DIN Plan Achro RP Objective (9122040)
- 100x /1.25 DIN Infinity DIN Plan Achro RP Objective (9122100)
- 200mm x 160mm Ceramic Coated RacklessX mechanical stage
- 'True' Koehler LED Illuminator
- Built-in Li-Ion Battery allows cordless use up to 8 hrs
- Universal input (100-240VAC) power supply
- Includes: dust cover ,allen wrench, cleaning cloth, spare fuse







9144100: Labomed Lx500 Ergonomic Phase Contrast 10/20/40/100
MSRP: $3,095.00
Our Price:$2,445.00

- 0-25˚ Ergonomic binocular view head, 360˚ rotatable (9140300)
- WF10x/22 Eyepiece set (9140010)
- 10x /0.25 DIN Infinity DIN Phase Plan Achro RP Objective (9123010)
- 20x /0.40 DIN Infinity DIN Phase Plan Achro RP Objective (9123020)
- 40x /0.65 DIN Infinity DIN Phase Plan Achro RP Objective (9123040)
- 100x /1.25 DIN Infinity DIN Phase Plan Achro RP Objective (9123100)
- Phase contrast turret (3134045)
- Phase centering telescope with 30mm adapter
- Green and Blue filters (9146065, 9146060)
- 200mm x 160mm Ceramic Coated RacklessX mechanical stage
- Koehler  Illuminator  (6v 30watt halogen)
- Universal input (100-240VAC) power supply
- Includes: dust cover ,allen wrench, cleaning cloth, spare lamp & fuse







9144200: Labomed Lx500 Binocular 4/10/40/100
MSRP: $1,751.00
Our Price:$1,663.00

- 30˚ binocular view head, 360˚ rotatable (9126200)
- WF10x/20 Eyepiece (9120011)
- 4x /0.10 Infinity DIN Plan Achro RP Objective (9122005)
- 10x /0.25 DIN Infinity DIN Plan Achro RP Objective (9122010)
- 40x /0.65 DIN Infinity DIN Plan Achro RP Objective (9122040)
- 100x /1.25 DIN Infinity DIN Plan Achro RP Objective (9122100)
- 200mm x 160mm Ceramic Coated RacklessX mechanical stage
- Koehler  Illuminator  (6v 30watt halogen)
- Universal input (100-240VAC) power supply
- Includes: dust cover ,allen wrench, cleaning cloth, spare lamp & fuse







9144210: Labomed Lx500 LED Binocular 4/10/40/100
MSRP: $1,800.00
Our Price:$1,530.00

- 30¢ª binocular view head, 360¢ª rotatable (9126200)
- WF10x/20 Eyepiece (9120011)
- 4x /0.10 Infinity DIN Plan Achro RP Objective (9122005)
- 10x /0.25 DIN Infinity DIN Plan Achro RP Objective (9122010)
- 40x /0.65 DIN Infinity DIN Plan Achro RP Objective (9122040)
- 100x /1.25 DIN Infinity DIN Plan Achro RP Objective (9122100)
- 200mm x 160mm Ceramic Coated RacklessX mechanical stage
- 'True' Koehler LED Illuminator
- Built-in Li-Ion Battery allows cordless use up to 8 hrs
- Universal input (100-240VAC) power supply
- Includes: dust cover ,allen wrench, cleaning cloth, spare fuse







9144400: Labomed Lx500 Binocular Phase Contrast 10/20/40/100
MSRP: $2,348.00
Our Price:$2,230.00

- 30˚ binocular view head, 360˚ rotatable (9126200)
- WF10x/20 Eyepiece (9120011)
- 10x /0.25 DIN Infinity DIN Phase Plan Achro RP Objective (9123010)
- 20x /0.40 DIN Infinity DIN Phase Plan Achro RP Objective (9123020)
- 40x /0.65 DIN Infinity DIN Phase Plan Achro RP Objective (9123040)
- 100x /1.25 DIN Infinity DIN Phase Plan Achro RP Objective (9123100)
- Phase contrast turret (3134045)
- Phase centering telescope with 30mm adapter
- Green and Blue filters (9146065, 9146060)
- 200mm x 160mm Ceramic Coated RacklessX mechanical stage
- Koehler  Illuminator  (6v 30watt halogen)
- Universal input (100-240VAC) power supply
- Includes: dust cover ,allen wrench, cleaning cloth, spare lamp & fuse







9144300: Labomed Lx500 Trinocular 4/10/40/100
MSRP: $1,931.00
Our Price:$1,834.00

- 30˚ trinocular view head, 360˚ rotatable (9126300)
- WF10x/20 Eyepiece (9120011)
- 4x /0.10 Infinity DIN Plan Achro RP Objective (9122005)
- 10x /0.25 DIN Infinity DIN Plan Achro RP Objective (9122010)
- 40x /0.65 DIN Infinity DIN Plan Achro RP Objective (9122040)
- 100x /1.25 DIN Infinity DIN Plan Achro RP Objective (9122100)
- 200mm x 160mm Ceramic Coated RacklessX mechanical stage
- Koehler  Illuminator  (6v 30watt halogen)
- Universal input (100-240VAC) power supply
- Includes: dust cover ,allen wrench, cleaning cloth, spare lamp & fuse







9144310: Labomed Lx500 LED Trinocular 4/10/40/100
MSRP: $1,985.00
Our Price:$1,655.00

- 30¢ª trinocular view head, 360¢ª rotatable (9126300)
- WF10x/20 Eyepiece (9120011)
- 4x /0.10 Infinity DIN Plan Achro RP Objective (9122005)
- 10x /0.25 DIN Infinity DIN Plan Achro RP Objective (9122010)
- 40x /0.65 DIN Infinity DIN Plan Achro RP Objective (9122040)
- 100x /1.25 DIN Infinity DIN Plan Achro RP Objective (9122100)
- 200mm x 160mm Ceramic Coated RacklessX mechanical stage
- 'True' Koehler LED Illuminator
- Built-in Li-Ion Battery allows cordless use up to 8 hrs
- Universal input (100-240VAC) power supply
- Includes: dust cover ,allen wrench, cleaning cloth, spare fuse







9144500: Labomed Lx500 Trinocular Phase Contrast 10/20/40/100
MSRP: $2,529.00
Our Price:$2,401.00

- 30˚ trinocular view head, 360˚ rotatable (9126300)
- WF10x/20 Eyepiece (9120011)
- 10x /0.25 DIN Infinity DIN Phase Plan Achro RP Objective (9123010)
- 20x /0.40 DIN Infinity DIN Phase Plan Achro RP Objective (9123020)
- 40x /0.65 DIN Infinity DIN Phase Plan Achro RP Objective (9123040)
- 100x /1.25 DIN Infinity DIN Phase Plan Achro RP Objective (9123100)
- Phase contrast turret (3134045)
- Phase centering telescope with 30mm adapter
- Green and Blue filters (9146065, 9146060)
- 200mm x 160mm Ceramic Coated RacklessX mechanical stage
- Koehler  Illuminator  (6v 30watt halogen)
- Universal input (100-240VAC) power supply
- Includes: dust cover ,allen wrench, cleaning cloth, spare lamp & fuse








  OTHER Labomed Accessories:



9140300: Ergonomic Binocular Head
Price: $980.00

- 0-25˚ Ergonomic binocular view head
- Interpupillary range : 47mm – 75mm
- 30mm occular tube
- Shown with optional eyepieces – not included, order below
- Only for use on TCM400 and LX500 models







oem/cxr-3-dual-view_ghost1.jpg
9126200 : DUAL-VIEW bridge attachment Kit
MSRP: $2,100.00
Our Price:$1,995.00

- Dual view bridge with LED illuminated pointer
- Binocular Head with WF10x/20mm paired eyepieces
- Universal Power supply (100 - 240vac)input
- Replaces earlier part# 9129000, 9149000







9125500: Lx500/Lx400 Fluorescence Kit
MSRP: $2,625.00
Our Price:$2,190.00

- EPI-Fluorescence attachment with 50 watt mercury light source
- B excitation block (Excitation: 450-460nm, Barrier: 515nm, Dichroic:500nm)
- G excitation block (Excitation: 510-550nm, Barrier: 590nm, Dichroic:570nm)
- Order Fluorescence objectives separately (not included – see below)



Manufacturer: Labo America (Labomed)




9144510: LABOMED Lx500 Phase Kit
MSRP: $1,235.00
Our Price:$1,045.00

- Zernike Phase System
- 10x /0.25 DIN Infinity DIN Plan Achro RP Objective (9123010)
- 20x /0.40 DIN Infinity DIN Phase Plan Achro RP Objective (9123020)
- 40x /0.65 DIN Infinity DIN Plan Achro RP Objective (9123040)
- 100x /1.25 DIN Infinity DIN Plan Achro RP Objective (9123100)
- Phase contrast turret (3134045)
- Phase centering telescope with 30mm adapter (3126005, 9126005-10)
- Green and Blue filters (9146065, 9146060)]







9146055: LX500 Polarizing Kit
MSRP: $110.00
Our Price:$94.00

- Simple polarizer
- Analyzer







9144050 : LX500 Darkfield Kit
Price: $375.00

- 100x DIN (iris,spring,oil) Achro objective (9121105)
- Darkfield condensor NA 1.25 oil (3134044)



Manufacturer: Labo America (Labomed)




rp_planachro_obj-sm.jpgLabomed RP Series Infinity Corrected DIN Plan Acromat Objectives
- For use with Flourescence Kit # 9125500 and all standard non-phase models
- Use as replacements for earlier CXR3, CXR4 models
  (3132005, 3132010, 3132020, 3132040, 3132100)




oem/10x23mm-ep_12710911.jpgLabomed Eyepieces for ergonomic head:




oem/cross-line_reticle_grad1.jpg
9140011 : EYEPIECE with RETICLE – Cross scale 10/100
Price: $190.00

- Pre-installed in 10x/20 focusable eyepiece w/ eyeguard
- Cross-line scale 10mm / 100 divisions







oem/na.jpg
9124048 : Flip-top ABBE 1.25NA condensor
Price: $180.00

- Use with 2.5x objective # 9142002 (not included - see above)







oem/cxr3-phase-turret_31340451.jpg
3134045: Phase Turret
Price: $645.00

- 5 positions; BF, 10x, 20x, 40x, 100x
- Built-in centering tools
- Use with Phase Plan Objectives (9123xxx series )







labomed.jpgLabomed RP Series Infinity DIN Plan Acromat Phase Contrast Objectives:
- For use with Flourescence Kit # 9125500 and all standard non-phase models




oem/green-filter-labomed1.jpg32.0mm mounted




3136010.jpgC-Mount Adapters for Labomed LX500 Trinocular Head:





  OTHER Microscope Accessories:



infinity1-product-1.jpgInfinity 1 Mpixel CMOS Digital Camera

- General purpose scientific grade CMOS cameras
- Advanced imaging and archiving software (WinXp, 2000, Vista, Win7)
- MAC drivers included
- USB2.0 high speed interface required
- Use with 0.5x C-mount adapter #3136010 – not included






infinity2-1.jpgInfinity 2 Mpixel CCD Digital Camera

- Greater low light sensitivity than CMOS cameras
- Recommended for phase contrast microscopy
- Advanced imaging and archiving software (WinXp, 2000, Vista, Win7)
- MAC drivers included
- USB2.0 high speed interface required
- Use with 0.5x C-mount adapter #3136010 – not included






Replacement lamps: EL-455: 6v 30watt halogen lamp
Price: $47.00







oem/na.jpg
913PK020 : Dust Cover
Price: $60.00

- Nylon cloth dust cover





oem/na.jpg
PK-030: Lens Cleaning Tissue
Price: $4.00

- Box of 100 tissue papers





oem/na.jpg
PK-035: Immersion Oil
Price: $12.00

- 10ml bottle




: PDF DATA SHEET:

Labomed Lx500 Specs

Lx500 System Diagram


OTHER MODELS:

Labomed CxL Microscope: Labomed advanced educational microscope
Lx400 Research Microscope: Lx400 Infinity corrected optical system microscopes
Lx400 Fluorescence Microscope: EPI Fluorescence research microscope; infinity corrected optics Labomed Lx400 models
TCM400 Inverted Phase Contrast/Fluorescence Research Microscope: Inverted phase contrast model with true color infinity optics
Digital Microscope Cameras: Wide range of high quality digital microscope cameras from Lumenera, Pixera, and other quality models




HOME | SUPPORT | CONTACT | TERMS & CONDITIONS | PRIVACY POLICY | SITE MAP

PRODUCTS: MICROSCOPES | MICROSCOPES by SPECIALTY | MICROSCOPES by MAKE | MICROSCOPE COMPONENTS/UPGRADES | Custom MICROSCOPE Build | ZOOM INSPECTION SYSTEMS | DIGITAL IMAGING | VIDEO IMAGING (NTSC/PAL) | REPLACEMENT LAMPS | LIGHTING PRODUCTS | WEB SPECIALS | USED / REBUILT MICROSCOPE SYSTEMS | DOWNLOADS & TUTORIALS
