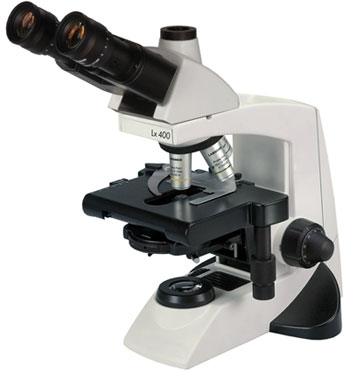

LABOMED Lx400 RESEARCH MICROSCOPE

Products Catalogŧ MICROSCOPES by SPECIALTYŧ Veterinary

Products Catalogŧ Microscopesŧ BIOMEDICAL Compoundŧ LABOMED Lx400 RESEARCH MICROSCOPE

Products Catalogŧ MICROSCOPES by SPECIALTYŧ Viticulture / Wine Makingŧ LABOMED Lx400 RESEARCH MICROSCOPE






LABOMED Lx400 Research Microscope laboratory and clinical biological microscope. Options include epi fluorescence microscopy, phase contrast microscope, polarizing microscope, and darkfield. Compare to Leica DM1000 and Olympus CX31 microscopes

GENERAL FEATURES:

• Plan RP Achro Objectives
- Parfocal and parcentral
- Infinity corrected design

• Binocular and Trinocular models
- Extra-wide viewing field

• ABBE substage NA 1.25 condenser
- Aspheric lense with diaphragm iris
- Rack / pinion movement

• Quadruple Reverse angle nosepiece

• 6v/20 or 6v/30 watt halogen illumination
or
• LED illumination models
- Rechargeable battery

• Universal (110-240vac) charger / adapter

• Mechanical XY stage 200mm x 160mm
- 78mm x 54mm travel
- Rack-less design x-axis

• Fluorescence, Phase Contrast, POL, DF options

• Dimensions(mm): 291 L x 227 W x 375 H

• Manufacturer: Labomed (Labo America)

LABOMED Lx400 Advanced Research Microscope:


The Labomed Lx400 series represents the new generation of microscopes for research laboratory applications. The Lx400 is built on a robust aluminum frame with an emphasis on ergonomics. New generation infinity corrected RP optics provide true color and excellent contrast.


The lighting choices include 6v/20w halogen, 6v/30w halogen AC or High Output LED powered by a rechargeable battery. All versions feature universal (100-240VAC) power supplies for worldwide use. The Labomed Lx400 microscope is available in a wide range of configurations including EPI-Fluorescence, providing excellent performance without the cost.


MODELS:


  Labomed QUICKORDER CONFIGURATIONS: (Pre-configured Models)



9126001: LABOMED Lx400 Binocular 4/10/40/100 – Halogen 20W
MSRP: $1,038.00
Our Price:$985.00

- 30° binocular view head, 360˚ rotatable (9126200)
- WF10x/20 Eyepiece (9120011)
- 4x /0.10 Infinity DIN Plan Achro RP Objective (9122005)
- 10x /0.25 DIN Infinity DIN Plan Achro RP Objective (9122010)
- 40x /0.65 DIN Infinity DIN Plan Achro RP Objective (9122040)
- 100x /1.25 DIN Infinity DIN Plan Achro RP Objective (9122100)
- 200mm x 160mm XY mechanical stage
- 6v 20watt halogen Illumination system
- Universal input (100-240VAC) power supply



Manufacturer: Labo America (Labomed)




9126003: LABOMED Lx400 Binocular 4/10/40/100 – Halogen 30W
MSRP: $1,092.00
Our Price:$1,037.00

- 30˚ binocular view head, 360˚ rotatable (9126200)
- WF10x/20 Eyepiece (9120011)
- 4x /0.10 Infinity DIN Plan Achro RP Objective (9122005)
- 10x /0.25 DIN Infinity DIN Plan Achro RP Objective (9122010)
- 40x /0.65 DIN Infinity DIN Plan Achro RP Objective (9122040)
- 100x /1.25 DIN Infinity DIN Plan Achro RP Objective (9122100)
- 200mm x 160mm XY mechanical stage
- 6v 30watt halogen Illumination system
- Universal input (100-240VAC) power supply



Manufacturer: Labo America (Labomed)




9126011: LABOMED Lx400 Binocular 4/10/40/100 - LED
MSRP: $1,095.00
Our Price:$1,037.00

- 30° binocular view head, 360° rotatable (9126200)
- WF10x/20 Eyepiece (9120011)
- 4x /0.10 Infinity DIN Plan Achro RP Objective (9122005)
- 10x /0.25 DIN Infinity DIN Plan Achro RP Objective (9122010)
- 40x /0.65 DIN Infinity DIN Plan Achro RP Objective (9122040)
- 100x /1.25 DIN Infinity DIN Plan Achro RP Objective (9122100)
- 200mm x 160mm XY mechanical stage
- LED Illumination System
- Rechargeable battery 7.4v, 1000 mAH (9135000-902)
- Universal input (100-240VAC) power supply



Manufacturer: Labo America (Labomed)




9126002: LABOMED Lx400 Trinocular 4/10/40/100 – Halogen 20W
MSRP: $1,226.00
Our Price:$1,164.00

- 30° trinocular view head, 360° rotatable (9126300)
- WF10x/20 Eyepiece (9120011)
- 4x /0.10 Infinity DIN Plan Achro RP Objective (9122005)
- 10x /0.25 DIN Infinity DIN Plan Achro RP Objective (9122010)
- 40x /0.65 DIN Infinity DIN Plan Achro RP Objective (9122040)
- 100x /1.25 DIN Infinity DIN Plan Achro RP Objective (9122100)
- 200mm x 160mm XY mechanical stage
- 6v 20watt halogen Illumination system
- Universal input (100-240VAC) power supply



Manufacturer: Labo America (Labomed)




9126004: LABOMED Lx400 Trinocular 4/10/40/100 – Halogen 30W
MSRP: $1,280.00
Our Price:$1,216.00

- 30° trinocular view head, 360° rotatable (9126300)
- WF10x/20 Eyepiece (9120011)
- 4x /0.10 Infinity DIN Plan Achro RP Objective (9122005)
- 10x /0.25 DIN Infinity DIN Plan Achro RP Objective (9122010)
- 40x /0.65 DIN Infinity DIN Plan Achro RP Objective (9122040)
- 100x /1.25 DIN Infinity DIN Plan Achro RP Objective (9122100)
- 200mm x 160mm XY mechanical stage
- 6v 30watt halogen Illumination system
- Universal input (100-240VAC) power supply



Manufacturer: Labo America (Labomed)




9126012: LABOMED Lx400 Trinocular 4/10/40/100 - LED
MSRP: $1,280.00
Our Price:$1,216.00

- 30° trinocular view head, 360° rotatable (9126300)
- WF10x/20 Eyepiece (9120011)
- 4x /0.10 Infinity DIN Plan Achro RP Objective (9122005)
- 10x /0.25 DIN Infinity DIN Plan Achro RP Objective (9122010)
- 40x /0.65 DIN Infinity DIN Plan Achro RP Objective (9122040)
- 100x /1.25 DIN Infinity DIN Plan Achro RP Objective (9122100)
- 200mm x 160mm XY mechanical stage
- LED Illumination System
- Rechargeable battery 7.4v, 1000 mAH (9135000-902)
- Universal input (100-240VAC) power supply



Manufacturer: Labo America (Labomed)




9126005: Lx400 Binocular Phase Contrast 10/20/40/100
MSRP: $1,598.00
Our Price:$1,518.00

- 30° binocular view head, 360° rotatable (9126200)
- WF10x/20 Eyepiece (9120011)
- 10x /0.25 DIN Infinity DIN Phase Plan Achro RP Objective (9123010)
- 20x /0.40 DIN Infinity DIN Phase Plan Achro RP Objective (9123020)
- 40x /0.65 DIN Infinity DIN Phase Plan Achro RP Objective (9123040)
- 100x /1.25 DIN Infinity DIN Phase Plan Achro RP Objective (9123100)
- Phase contrast turret (3134045)
- Phase centering telescope with 30mm adapter
- Green and Blue filters (3136065, 3136060)]
- 200mm x 160mm XY mechanical stage
- 6v 30watt halogen Illumination system
- Universal input (100-240VAC) power supply



Manufacturer: Labo America (Labomed)




9126006: LABOMED Lx400 Trinocular Phase Contrast 10/20/40/100
MSRP: $1,773.00
Our Price:$1,684.00

- 30° trinocular view head, 360° rotatable (9126300)
- WF10x/20 Eyepiece (9120011)
- 10x /0.25 DIN Infinity DIN Plan Achro RP Objective (9123010)
- 20x /0.40 DIN Infinity DIN Phase Plan Achro RP Objective (9123020)
- 40x /0.65 DIN Infinity DIN Plan Achro RP Objective (9123040)
- 100x /1.25 DIN Infinity DIN Plan Achro RP Objective (9123100)
- Phase contrast turret (3134045)
- Phase centering telescope with 30mm adapter
- Green and Blue filters (3136065, 3136060)]
- 200mm x 160mm XY mechanical stage
- 6v 30watt halogen Illumination system
- Universal input (100-240VAC) power supply



Manufacturer: Labo America (Labomed)




9126009: LABOMED Lx400 Binocular Fluorescence 4/10/40/100
MSRP: $3,100.00
Our Price:$2,945.00

- 30° binocular view head, 360° rotatable (9126200)
- WF10x/20 Eyepiece (9120011)
- 4x /0.10 Infinity DIN Plan Fluorescence Achro RP Objective (9121005)
- 10x /0.25 DIN Infinity DIN Plan Fluorescence Achro RP Objective (9121010)
- 40x /0.65 DIN Infinity DIN Plan Fluorescence Achro RP Objective (9121040)
- 100x /1.25 DIN Infinity DIN Plan Fluorescence Achro RP Objective (9121100)
- 200mm x 160mm XY mechanical stage
- 6v 20watt halogen Illumination system
- Universal input (100-240VAC) power supply
- EPI-Fluorescence attachment with 50 watt mercury light source
- B excitation block (Excitation: 450-460nm, Barrier: 515nm, Dichroic:500nm)
- G excitation block (Excitation: 510-550nm, Barrier: 590nm, Dichroic:570nm)



Manufacturer: Labo America (Labomed)




9126100: Lx400 Trinocular Fluorescence 4/10/40/100
MSRP: $3,275.00
Our Price:$2,815.00

- 30ĒŠ trinocular view head, 360ĒŠ rotatable (9126300)
- WF10x/20 Eyepiece (9120011)
- 4x /0.10 Infinity DIN Plan Fluorescence Achro RP Objective (9121005)
- 10x /0.25 DIN Infinity DIN Plan Fluorescence Achro RP Objective (9121010)
- 40x /0.65 DIN Infinity DIN Plan Fluorescence Achro RP Objective (9121040)
- 100x /1.25 DIN Infinity DIN Plan Fluorescence Achro RP Objective (9121100)
- 200mm x 160mm XY mechanical stage
- 6v 20watt halogen Illumination system
- Universal input (100-240VAC) power supply
- EPI-Fluorescence attachment with 50 watt mercury light source
- B excitation block (Excitation: 450-460nm, Barrier: 515nm, Dichroic:500nm)
- G excitation block (Excitation: 510-550nm, Barrier: 590nm, Dichroic:570nm)





Manufacturer: Labo America (Labomed)





  OTHER Labomed Accessories:



9126400: Siedentopf Binocular Head
Price: $235.00

- 30˚ inclined
- Eyepieces not included
- Interpupillary range : 48mm – 75mm
- 30mm occular tube
- Legacy part# 9126200



Manufacturer: Labo America (Labomed)




9126600: Siedentopf Trinocular Head
Price: $400.00

- 30˚ inclined
- Eyepieces not included
- Interpupillary range : 48mm – 75mm
- 30mm occular tube
- Integrated camera port (c-mount not included)
   Use c-mount adapter 9126021 - see below
- Legacy part# 9126300



Manufacturer: Labo America (Labomed)




oem/cxr-3-dual-view_ghost1.jpg
3139000 : DUAL-VIEW bridge attachment Kit
Price: $2,200.00

- Dual view bridge with illuminated pointer
- Binocular Head with WF10x/18mm paired eyepieces
- Power supply with 110v or 220v input



Manufacturer: Labo America (Labomed)




9125500: Lx400 Fluorescence Kit
MSRP: $2,205.00
Our Price:$1,870.00

- EPI-Fluorescence attachment with 50 watt mercury light source
- B excitation block (Excitation: 450-460nm, Barrier: 515nm, Dichroic:500nm)
- G excitation block (Excitation: 510-550nm, Barrier: 590nm, Dichroic:570nm)
- Order Fluorescence objectives separately (not included – see below)




Manufacturer: Labo America (Labomed)




oem/na.jpgLabomed RP Series Infinity DIN Plan Acromat Fluorescence Objectives:
- For use with Flourescence Kit # 9125500




9126000: LABOMED Lx400 Phase Kit
Price: $1,175.00

- 10x /0.25 DIN Infinity DIN Plan Achro RP Objective (9123010)
- 20x /0.40 DIN Infinity DIN Phase Plan Achro RP Objective (9123020)
- 40x /0.65 DIN Infinity DIN Plan Achro RP Objective (9123040)
- 100x /1.25 DIN Infinity DIN Plan Achro RP Objective (9123100)
- Phase contrast turret (3134045)
- Phase centering telescope with 30mm adapter
- Green and Blue filters (3136065, 3136060)]



Manufacturer: Labo America (Labomed)




9126055: Polarizing Kit
MSRP: $110.00
Our Price:$94.00

- Simple polarizer
- Analyzer







9124050 : Darkfield Kit
Price: $374.00

- 100x DIN (iris,spring,oil) Achro objective (9121105)
- Darkfield condensor NA 1.25 oil (3134044)

Manufacturer: Labo America (Labomed)




rp_planachro_obj-sm.jpgLabomed RP Series Infinity Corrected DIN Plan Acromat Objectives
- For use with Flourescence Kit # 9125500 and all standard non-phase models
- Use as replacements for earlier CXR3, CXR4 models
  (3132005, 3132010, 3132020, 3132040, 3132100)




oem/10x23mm-ep_12710911.jpgLabomed Eyepieces 30.0mm tube diameter:




oem/cross-line_reticle_grad1.jpg
9120013 : EYEPIECE with RETICLE – Cross scale 10/100
Price: $160.00

- Pre-installed in 10x/20 focusable eyepiece w/ eyeguard
- Cross-line scale 10mm / 100 divisions

Manufacturer: Labo America (Labomed)




oem/cxr3-phase-turret_31340451.jpg
3134045: Phase Turret
Price: $645.00

- 5 positions; BF, 10x, 20x, 40x, 100x
- Built-in centering tools
- Use with Phase Plan Objectives (9123xxx series )







rp-phase-objective-sm.jpgRP Series Infinity DIN Plan Acromat Phase Contrast Objectives:
- Included in Phase Kit # 9126000 and use with Flourescence Kit # 9125500




oem/green-filter-labomed1.jpg32.0mm mounted




3136010.jpgC-Mount Adapters for Labomed LX400 / LX500 Trinocular Head:





  OTHER Microscope Accessories:



infinity1-product-1.jpgInfinity 1 Mpixel CMOS Digital Camera

- General purpose scientific grade CMOS cameras
- Advanced imaging and archiving software (WinXp, 2000, Vista, Win7)
- MAC drivers included
- USB2.0 high speed interface required
- Use with 0.5x C-mount adapter #3136010 – not included






infinity2-1.jpgInfinity 2 Mpixel CCD Digital Camera

- Greater low light sensitivity than CMOS cameras
- Recommended for phase contrast microscopy
- Advanced imaging and archiving software (WinXp, 2000, Vista, Win7)
- MAC drivers included
- USB2.0 high speed interface required
- Use with 0.5x C-mount adapter #3136010 – not included






312086.jpgLabomed LX400 Replacement lamps:




oem/na.jpg
9135000-901: LED
Price: $35.00

- 3.4volt / 1watt mounted on heatsink

Manufacturer: Labo America (Labomed)




oem/na.jpg
9135000-902: Labomed LX400 Rechargeable Battery
Price: $25.00

- 7.4v / 1000mA

Manufacturer: Labo America (Labomed)




oem/na.jpg
913PK020 : Dust Cover
Price: $60.00

- Nylon cloth dust cover





oem/na.jpg
913PK020 : Dust Cover
Price: $60.00

- Nylon cloth dust cover

Manufacturer: Labo America (Labomed)




oem/na.jpg
PK-035: Immersion Oil
Price: $12.00

- 10ml bottle





oem/na.jpg
PK-030: Lens Cleaning Tissue
Price: $4.00

- Box of 100 tissue papers




: PDF DATA SHEET:

Labomed Lx400 Specs

Lx400 System Diagram



OPTIONS:

• Labomed CxL Microscope :  Labomed advanced educational microscope
• Labomed Lx500 Research Microscope: Labomed LX500 premium series infinity corrected ergonomic research microscope
• Labomed TCM400 Inverted Phase/Fluorescence Research Microscope: Inverted phase contrast microscope with true color infinity optics
• Digital Microscope Cameras: Wide range of high quality digital microscope cameras from Lumenera, Pixera, and other quality models











HOME | SUPPORT | CONTACT | TERMS & CONDITIONS | PRIVACY POLICY | SITE MAP

PRODUCTS: MICROSCOPES | MICROSCOPES by SPECIALTY | MICROSCOPES by MAKE | MICROSCOPE COMPONENTS/UPGRADES | Custom MICROSCOPE Build | ZOOM INSPECTION SYSTEMS | DIGITAL IMAGING | VIDEO IMAGING (NTSC/PAL) | REPLACEMENT LAMPS | LIGHTING PRODUCTS | WEB SPECIALS | USED / REBUILT MICROSCOPE SYSTEMS | DOWNLOADS & TUTORIALS
