Lumenera PELTIER COOLED CCD sensor models (ultra-high sensitivity)
The Lumenera INFINITY 3 series of Peltier cooled and un-cooled CCD based cameras provide extreme low light sensitivity and dynamic range. They are ideal for quantitative analysis, extremely low light, and long exposure applications (e.g. Trace fluorescence, astronomy, FRET, TIRF, FRAP, calcium, bio-luminescence, live cell imaging, spectroscopy, cytometry).
The new 6 Megapixel series, 3-6URC and 3-6URM, now offer high speed, high resolution fluorescence imaging using an un-cooled new generation Sony sensor (ICX674). The 3-3UR models provide extremely low dark current and readout noise with high quantum efficiency with fast frame rates. Ideal for high resolution fluorescence, NearIR (NIR), GFP, FISH, NIR, FRET fluorescence applications.
The 3-1 high sensitivity CCD sensor is also available in the significantly upgraded non-cooled INFINITY 3-1UR models. The 3-1UR replaces the previous 3-1U models with enhanced performance at no increase in cost. The 3-1UR is available in either color (3-1URC) or monochrome (3-1URM) versions and offers a lower cost alternative to cooled sensor models for applications not requiring the extreme low light sensitivity such as GFP, FISH, NIR, FRET fluorescence.
All models come with the Advanced Infinity ANALYZE image analysis, basic Infinity CAPTURE, and TWAIN software packages. We also offer more application specific advanced software packages.
The Lumenera 3-1, 3-3 and new 3-6 series offers superior performance at significantly lower cost than the competitors. COMPARE and SAVE.
- Call Us: 916-880-8575
- Serving Our Community Since 1972
- About Us
- Inspection booths
-
Products
-
- LED Illumination Products
- Ergonomic Inspection Booths
- Motorized Microscope Inspection
-
Microscope
-
- Student Microscopes
- ERGONOMIC Microscopes
- STEREO Microscopes
- Industrial Inspection
- Biomedical
- RZ Research Zoom Stereomicroscope
- SPZ Series Zoom Stereo Microscope
- SZ645 Zoom Stereomicroscope
- SZ445/SZ460 Zoom Stereomicroscope
- Labomed Luxeo 6z 6:1 Zoom Stereomicroscope
- SZ4 Stereozoom Microscope
- Labomed Luxeo 4Z Stereozoom Microscope
- Labomed Luxeo 4D Digital Stereozoom Microscope
- Stereo Microscope Configuration Guide
- INDUSTRIAL Compound
- BIOMEDICAL Compound
-
- Microscope by Speciality
- Microscope Components/Upgrades
- Custom Microscope Build
- Macro-Zoom Inspection Products
- Digital Cameras and Imaging
- Video Imaging(NTSC/PAL)
- Illumination Products
- Specialty Replacement Lamps
- Used/Rebuilt Microscope Systems
- Tutorials/Downloads
-
- CLEARANCE!
- Service
- Support

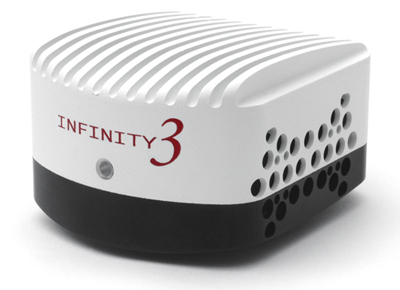

Lumenera INFINITY 3 CCD Cameras
 |
Peltier COOLED CCD (-25˚ below ambient) or
Non-cooled CCD models
Ultra-high sensitivity, low noise
Superior Extended dynamic range
Color or monochrome models
Up to 53 frames/sec @ 1936 x 1456 (3-3UR)
Up to 109 frames/sec with ROI and Binning
USB 3.0 (3-3, 3-6), 2.0 High Speed Interface
USB 2.0 bus power or external 5vdc
Dimensions 3.85 L x 2.00 W x 2.75 H
Included software:
- Infinity Capture
- Infinity Analyze
- TWAIN software
Manufacturer: Lumenera Corp
Models
-
Lumenera Corp
MSRP Price: $5,500.00
-
Lumenera Corp
MSRP Price: $5,500.00
-
Lumenera Corp
MSRP Price: $4,500.00
-
Lumenera Corp
MSRP Price: $4,500.00
-
Lumenera Corp
MSRP Price: $6,500.00
-
Lumenera Corp
MSRP Price: $6,500.00
-
Lumenera Corp
MSRP Price: $4,250.00
-
Lumenera Corp
MSRP Price: $4,250.00
-
SC67: for 2/3 sensor camera models
Optem / QIOptiq
Price: $375.00
|
Infinity 1 series: CMOS lower cost models ranging from 1.3MP to 5MP
Infinity 2 models: CCD 1.4MP to 3.2MP models for high end applications (color or monochrome)
Infinity 3 models: CCD peltier cooled 1.4 megapixel models for very low light applications (color or monochrome)
Infinity 4 models: CCD large format (35mm) 10.7 megapixel models (color or monochrome)
Infinity X32 models: CCD variable resolution 2 - 32 megapixel models (color or monochrome)
Infinity 2 models: CCD 1.4MP to 3.2MP models for high end applications (color or monochrome)
Infinity 3 models: CCD peltier cooled 1.4 megapixel models for very low light applications (color or monochrome)
Infinity 4 models: CCD large format (35mm) 10.7 megapixel models (color or monochrome)
Infinity X32 models: CCD variable resolution 2 - 32 megapixel models (color or monochrome)
