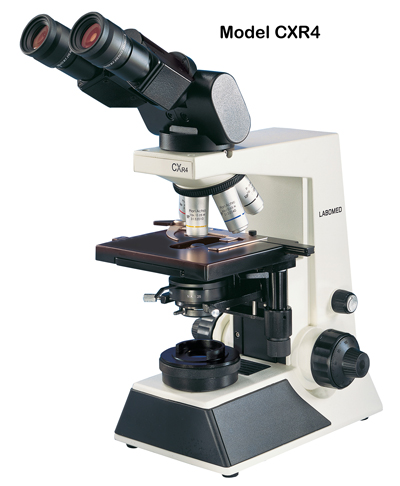

CXR4 Infinity Corrected Ergonomic Research models:
The CXR4 series of research microscopes utilize an Infinity corrected
Plan Achromatic optical system and an ERGONOMIC binocular observation head for
ultra-high performance levels and superior comfort over prolonged periods of
use. The advanced optical system provides true color rendition with 100% field
flatness and ultra-high image definition and contrast. The illumination system
features Koehler style optics with a 12v/20w halogen light source or optional
12v/30w halogen. Increased field-of-view is provided by the WF10x/22mm
eyepieces.
- Call Us: 916-880-8575
- Serving Our Community Since 1972
- About Us
- Inspection booths
-
Products
-
- LED Illumination Products
- Ergonomic Inspection Booths
- Motorized Microscope Inspection
-
Microscope
-
- Student Microscopes
- ERGONOMIC Microscopes
- STEREO Microscopes
- Industrial Inspection
- Biomedical
- RZ Research Zoom Stereomicroscope
- SPZ Series Zoom Stereo Microscope
- SZ645 Zoom Stereomicroscope
- SZ445/SZ460 Zoom Stereomicroscope
- Labomed Luxeo 6z 6:1 Zoom Stereomicroscope
- SZ4 Stereozoom Microscope
- Labomed Luxeo 4Z Stereozoom Microscope
- Labomed Luxeo 4D Digital Stereozoom Microscope
- Stereo Microscope Configuration Guide
- INDUSTRIAL Compound
- BIOMEDICAL Compound
-
- Microscope by Speciality
- Microscope Components/Upgrades
- Custom Microscope Build
- Macro-Zoom Inspection Products
- Digital Cameras and Imaging
- Video Imaging(NTSC/PAL)
- Illumination Products
- Specialty Replacement Lamps
- Used/Rebuilt Microscope Systems
- Tutorials/Downloads
-
- CLEARANCE!
- Service
- Support
xLaboMed CXR4 Ergonomic Research Models
 |
Infinity Corrected Plan Objectives
Ergonomic tilt binocular head (0-25˚)
WF10x/22 widefield eyepieces
Phase contrast model
Centerable ABBE condenser NA 1.25
- Aspherical lense
- Iris diaphragm and blue filter
Quintuple Reverse angle nosepiece
Universal power (110-240vac) UL/CE
Koehler 12v 20w halogen illumination
Optional 12v 30w (phase model)
Mechanical stage 150mm x 135mm
XY travel 76mm x 50mm (ball-bearing)
Models
-
3140300: ERGONOMIC Binocular Head
Price: $950.00
-
Standard Infinity Corrected DIN Plan Acromat Objectives
Price: $9,999.99
-
Eyepieces 30.0mm tube diameters
Price: $9,999.99
-
PHASE Infinity Corrected DIN Plan Acromat Objectives
Price: $9,999.99
-
3134045: Phase Turret
Labo America (Labomed)
Price: $645.00
-
12v 20watt halogen lamp
Price: $9,999.99
-
3130013 : EYEPIECE with RETICLE Γ’β¬β Cross scale 10/100
Price: $86.00
-
PKC-017|t|Soft carrying case (20.5" x15.5" x 10")
Labo America (Labomed)
Price:
$110.00$99.00
-
PK-020: Dust cover
Labo America (Labomed)
Price: $6.00
|
CXR4 Accessories : Accessories and parts for CXR4 ergonomic series microscopes
CXR3 Research: Infinity corrected optical system models
CXR3 Fluorescence: EPI Fluorescence research microscope; infinity corrected
optics CXR3 models
Digi2/Digi3 Binocular CXR3 modelswith built-in USB2.0 CMOS camera 1.3MPixel
(Digi2) or 3.1 MPixel (Digi3)
CXR2 Clinical: Cost effective general purpose microscopes
CXR2 Fluorescence: EPI Fluorescence microscope CXR2 models
DigiPLUS Binocular CXR2 model: with built-in USB2.0 camera Live/still image
display/capture 720 x 480 NTSC
