• Transmitted and incident light options
- Halogen
-Fluorescent
- LED
• Precision cast rigid construction stands
• XY mechanical stages
• Durable painted finish on stands
• Black anodized focus components
• Adaptable to most 76mm Stereomicroscopes
• Custom configurations available
Stereo Microscope Stands:
We offer a wide range of table stands and accessories for sterozoom microscope
models. Choose from track style and post style stands with a variety of lighting
choices (halogen, fluorescent, LED). Many other options are available that are
not yet listed. We also offer complete systems (see
Custom Microscope Build)
with a variety of microscope options.
Not sure what will work in your application? Contact us
with your requirements.
MODELS:
STEREO MICROSCOPE STANDS:
OEM-S202201: 76mm Ergonomic Column Stand Price:$363.00 Sale Price:$290.00
- Scope holder I.D : 76mm (3”)
- Base 280mm x 240mm x 25mm (11” x 9.45” x 1”)
- Distance from column to center of plate : 128mm (5.04”)
- Column height : 300mm (11.8”)
- Travel distance : 105mm ( 55mm step hole for adjustment of range)
- Weight : 6.05 lbs
- Adaptable for most stereozoom microscope manufacturers
- Supplied with 140mm black/white contrast plate
OEM-S204111: 76mm LED Dual Illumination Ergonomic Column Stand Price:$499.00 Sale Price:$399.00
- Scope holder I.D : 76mm (3”)
- Base 280mm x 240mm x 40mm (11” x 9.45” x 1.6”)
- Distance from column to center of plate : 128mm (5.04”)
- Column height : 340mm (13.4”)
- Travel distance : 100mm
- Weight : 6.05 lbs
- Adaptable for most stereozoom microscope manufacturers
- Clear glass plate 100mm x 2mm LED transmitted light
- Universal Power Supply 100-240VAC 50/60 Hz
OEM-S221101: 76mm Track Stand Price:$231.00 Sale Price:$185.00
- Scope holder I.D : 76mm (3”)
- Base 320mm x 305mm x 16mm (12.6” x 12” x 0.63”)
- Distance from column to center of plate : 120mm (4.75”)
- Track height : 325mm (12.8”)
- Travel distance : 250mm
- Weight : 6.8 lbs
- Supplied with 95mm black/white contrast plate
- Shown with optional travel limit clamp (OEM-SA225905) – not included
- Adaptable for most stereozoom microscope manufacturers
OEM-S223141: 76mm LED Dual Illumination Track Stand Price:$560.00 Sale Price:$455.00
- Scope holder I.D : 76mm (3”)
- Base 320mm x 305mm x 60mm (12.6” x 12” x 2.3”)
- Distance from column to center of plate : 120mm (4.75”)
- Track height : 325mm (12.8”)
- Travel distance : 250mm
- Weight : 6.8 lbs
- LED ring light for SZ microscopes (24v 8w)
- Bottom Light : LED transmitted backlight (24v 3w)
- Bottom Plate : Clear glass plate 95mm x 2mm
- Universal Power Supply 100-240VAC 50/60 Hz
- Adaptable for most stereozoom microscope manufacturers
OEM-S203101: 76mm Basic Post Stand Price:$195.00 Sale Price:$160.00
- Scope holder I.D : 76mm (3”)
- Base 252mm x 200mm x 24mm (9.9” x 8” x 0.9”)
- Distance from column to center of plate : 140mm (5.5”)
- Post height : 250mm x 32mm (10” x 1.26”)
- Focus Travel : 25mm (0.98”)
- Weight : 7 lbs
- Adaptable for most stereozoom microscope manufacturers
OEM-S211101: 76mm Large Post Stand Price:$215.00 Sale Price:$188.00
- Scope holder I.D : 76mm (3”)
- Base 320mm x 305mm x 16mm (12.6” x 12” x 0.62”)
- Distance from column to center of plate : 140mm (5.5”)
- Post height : 305mm x 32mm (12” x 1.26”)
- Extension Post : 150mm (5.9”)
- Focus Travel : 25mm (0.98”)
- Weight : 7 lbs
- Adaptable for most stereozoom microscope manufacturers
OEM-S212111: 76mm HF Dual Illumination Post Stand Price:$385.00 Sale Price:$308.00
- Scope holder I.D : 76mm (3”)
- Base 320mm x 305mm x 60mm (12.6” x 12” x 2.3”)
- Distance from column to center of plate : 140mm (5.5”)
- Post height : 305mm x 32mm (12” x 1.26”)
- Focus Travel : 25mm (0.98”)
- Weight : 12 lbs
- Top Light : Spot Halogen w/dimmer (12v 15w)
- Bottom Light : Fluorescent transmitted backlight w/dimmer (15w)
- Bottom Plate : Clear glass plate 95mm x 2mm
- Universal Power Supply 100-240VAC 50/60 Hz
- Adaptable for most stereozoom microscope manufacturers
SPECIAL APPLICATION STANDS:
OEM-S221106: Bausch & Lomb Style Track Stand Price:$390.00 Sale Price:$285.00
- Scope holder I.D : 39mm (1.53”)
- Base 320mm x 305mm x 16mm (12.6” x 12” x 0.63”)
- Distance from column to center of plate : 100mm (4”)
- Track height : 325mm (12.8”)
- Travel distance : 250mm
- Weight : 6.8 lbs
- Fits B&L, Lecia, Cambridge Instruments StereoZoom 3-7 models
- Replaces part# 31-26-88-87 A-stand

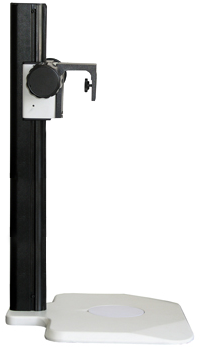

OEM-S221108: Camera N-adapter Large Track Stand Price:$350.00 Sale Price:$250.00
- Camera Mount : ¼”-20 standard camera mount thread
- Base 320mm x 305mm x 16mm (12.6” x 12” x 0.62”)
- Distance from column to front of base : 273mm (10.75”)
- Track height : 325mm (12.8”)
- Travel distance : 250mm
- Weight : 6.8 lbs
- Adaptable for most CCD and CMOS camera models
OEM-S211108: Camera N-adapter Large Post Stand Price:$390.00 Sale Price:$310.00
- Camera Mount : ¼”-20 standard camera mount thread
- Base 320mm x 305mm x 16mm (12.6” x 12” x 0.62”)
- Distance from column to front of base : 273mm (10.75”)
- Post height : 305mm x 32mm (12” x 1.26”)
- Extension Post : 150mm (5.9”)
- Focus Travel : 25mm (0.98”)
- Weight : 7 lbs
- Adaptable for most CCD and CMOS camera models
OEM-S211103: 39mm Large Post Stand Price:$390.00 Sale Price:$310.00
- Scope holder I.D : 39mm (1.53”)
- Base 320mm x 305mm x 16mm (12.6” x 12” x 0.62”)
- Distance from column to center of plate : 140mm (5.5”)
- Post height : 305mm x 32mm (12” x 1.26”)
- Extension Post : 150mm (5.9”)
- Focus Travel : 25mm (0.98”)
- Weight : 7 lbs
- Adaptable MZ series and other 39mm diameter optical systems
STAND ACCESSORIES:

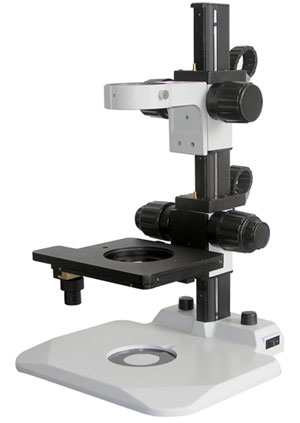

OEM-SA261201: XY Manual Stage for post or track stands Price:$450.00 Sale Price:$360.00
- Designed to clamp to post or track stands
- Clamp opening accomodates 25mm – 37.2mm (1” – 1.51”)
- 90mm x 60mm XY travel
- Coaxial drive control, left side drop-down
- Stage Dimensions : 180mm(L) x 150mm(W)
OEM-SA261101: XY Manual Stage for Stands with 95mm insert Price:$195.00 Sale Price:$155.00
- Designed to drop-in place of 95mm contrast plate
- 75mm x 56mm XY travel
- Glass area 116mm x 96mm, active area 37.6mm
- Dimensions : 180mm(L) x 155mm(W) x 27mm(H)
OEM-SA225905: Travel Limit Clamp for track stands Price:$25.00 Sale Price:$20.00
- Use to limit range of focus travel
- Maximum opening size : 31mm
- Fits all track stand models
:
