RZ Research Zoom Stereomicroscope Models

Products Catalog» Microscopes» Stereo Microscopes» Industrial» RZ Research Zoom Stereomicroscope Models

Products Catalog» Microscopes» Stereo Microscopes» Biomedical» RZ Research Zoom Stereomicroscope Models

Products Catalog» Microscopes»» ERGONOMIC microscopes»» RZ Research Zoom Stereomicroscope Models

Meiji RZ Research zoom stereomicroscope offering modular design, ergonomic binocular head, ultra-wide field optics, coaxial illumination

GENERAL FEATURES:

• 10:1 Zoom ratio (.75x-7.5x)

• Integral double aperature
- Provides increased depth-of-field control

• Parallel Optical Infinity Corrected System
- Accurate, distortion free color images

• Upgradeable Modular Design

• 76mm standard working distance (1.0x)

• ‘Flat field’ Plan Achromat Objectives

• High resolution viewing up to 300x

• High reliability, brass internal construction

• Large variety of optional components

• Various pre-configured versions

• Manufacturer: MEIJI Techno
- Quality MADE in JAPAN

Meiji RZ Research Stereozoom:

The Meiji RZ 10:1 research grade stereozoom is designed with a Galilean optical system to provide erect ultra-high resolution imaging. The RZ zoom system has detent stops at 12 magnification positions for consistent measurement results. The double adjustable aperature iris provides extended depth-of-field imaging for thick specimen viewing. The Plan Achromat objectives and ultra-wide field eyepieces provide flat field imaging. Full parfocality is assured by the use of adjustable diopters on both eyepieces. The Meiji RZ series is an excellent choice for industrial and life science applications where the finest quality imaging is required. All Meiji microscopes provide a lifetime performance warranty

MODELS:

QUICKORDER CONFIGURATIONS

RZ-1 Configuration
Price: ~~$4,420.00~~
Sale Price:$3,890.00

- Binocular View Head (MA748)
- Zoom Body (RZ-B)

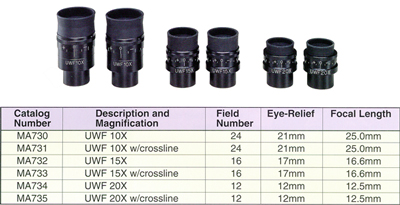

- UWF 10X Eyepiece Set (MA730)

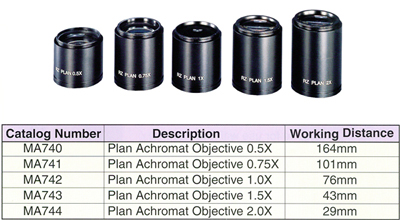

- 1.0X Plan Achromat Objective (MA742)
- Plain Stand (RZP)
- Magnification as configured : 7.5x – 75x

Manufacturer: Meiji Techno

RZ-2 Configuration
Price: ~~$6,370.00~~
Sale Price:$5,595.00

- ERGONOMIC Binocular View Head (MA749)
- Zoom Body (RZ-B)
- UWF 10X Eyepiece Set (MA730)
- 1.0X Plan Achromat Objective (MA742)
- Plain Stand (RZP)
- Magnification as configured : 7.5x – 75x

Manufacturer: Meiji Techno

RZ-3 Configuration
Price: ~~$4,840.00~~
Sale Price:$4,260.00

- Binocular View Head (MA748)
- Zoom Body (RZ-B)
- UWF 10X Eyepiece Set (MA730)
- 1.0X Plan Achromat Objective (MA742)
- Transmitted Light Stand (RZT)
- Magnification as configured : 7.5x – 75x

Manufacturer: Meiji Techno

RZ-4 Configuration
Price: ~~$6,790.00~~
Sale Price:$5,975.00

- ERGONOMIC Binocular View Head (MA749)
- Zoom Body (RZ-B)
- UWF 10X Eyepiece Set (MA730)
- 1.0X Plan Achromat Objective (MA742)
-Transmitted Light Stand (RZT)
- Magnification as configured : 7.5x – 75x

Manufacturer: Meiji Techno

RZ-5 Configuration
Price: ~~$6,945.00~~
Sale Price:$6,095.00

- Zoom Body (RZ-B)
- UWF 10X Eyepiece Set (MA730)
- Coaxial Illuminator, 1.5x factor (COX)
- Transformer (MA651/05)
- ¼ Wave Plate (MA762)
- 1.0X Plan Achromat Objective (MA742)
- Plain Stand (RZP)
- Magnification as configured : 11.25x – 112.5x

Manufacturer: Meiji Techno

RZ-6 Configuration
Price: ~~$8,895.00~~
Sale Price:$7,828.00

- ERGONOMIC Binocular View Head (MA749)
- Zoom Body (RZ-B)
- UWF 10X Eyepiece Set (MA730)
- Coaxial Illuminator, 1.5x factor (COX)
- Transformer (MA651/05)
- ¼ Wave Plate (MA762)
- 1.0X Plan Achromat Objective (MA742)
- Plain Stand (RZP)
- Magnification as configured : 11.25x – 112.5x

Manufacturer: Meiji Techno

OPTICAL COMPONENTS: (Build up your own configuration)

MA748: Standard View Head
Price: ~~$650.00~~
Sale Price:$585.00
- 45˚ inclined
- Interpupillary range : 46mm – 75mm

Manufacturer: Meiji Techno

MA749: ERGONOMIC View Head
Price: ~~$2,600.00~~
Sale Price:$2,340.00
- Adjustable inclination 10˚ - 50˚
- Interpupillary range : 46mm – 75mm

Manufacturer: Meiji Techno

RZ-B: Zoom Body
Price: ~~$2,190.00~~
Sale Price:$1,971.00

- 10:1 Zoom Ratio ( 0.75x – 7.5x magnification factor)
- Positive detent click-stops at 12 magnification positions
- Double adjustable iris diaphragm
- Integral coarse/fine focus mechanism (50mm range)
- 32mm Post mount

Manufacturer: Meiji Techno

MODULAR ACCESSORIES

MA751: Photoport attachmen
Price: ~~$980.00~~
Sale Price:$882.00

- Allows mounting of digital or video cameras
- 2 position prism; 100% eyepieces or 80/20 camera
- Simultaneous camera / binocular head viewing
- Requires video ‘ C’ mount (see below)
- Integral auxiliary side port for multiple cameras

Manufacturer: Meiji Techno

MA752: Auxiliary Video attachment
Price: ~~$380.00~~
Sale Price:$342.00

- Requires MA751 photoport attachment
- Provides an additional side port for camera use
- Standard MA151/10 ‘C’mount included
- Optional video ‘ C’ mounts available (see below)

Manufacturer: Meiji Techno

STANDS & STAGES

RZP : Plain Stand
Price: ~~$380.00~~
Sale Price:$335.00

- Anti-static finished aluminum base
- 95mm diameter black/white plastic contrast plate
- 2 stage clips
- Base dimensions : 280mm (W) x 255mm (D) x 35mm
- Pillar dimensions : 325mm (H) x 32mm diameter

Manufacturer: Meiji Techno

RZT : Transmitted Light Stand
Price: ~~$800.00~~
Sale Price:$705.00

- Anti-static finished aluminum base
- 95mm diameter clear glass plate
- 2 stage clips
- 6v 30w halogen lamp with variable intensity
- Second transformer built in base for COX illuminator
- Base dimensions : 280mm (W) x 255mm (D) x 85mm
- Pillar dimensions : 325mm (H) x 32mm diameter

Manufacturer: Meiji Techno

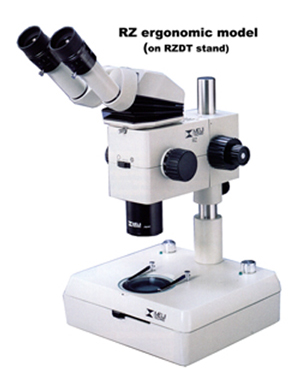

RZDT: Bright/darkfield transmitted Base
Price: ~~$1,200.00~~
Sale Price:$1,055.00

- Anti-static finished aluminum base - 95mm diameter clear glass plate
- 2 stage clips
- Front mounted Brightfield / Darkfield Selector
- 6v 30w halogen lamp with variable intensity
- Second transformer built in base for COX illuminator
- Base dimensions : 280mm (W) x 255mm (D) x 85mm
- Pillar dimensions : 325mm (H) x 32mm diameter

Manufacturer: Meiji Techno

BS-Post: Basic Boom Arm Stand
Price: ~~$500.00~~
Sale Price:$400.00

- 18” Boom Arm w/ 5/8” post mount hole
- 14” Vertical Post
- Lock Collar
- Includes 32mm diameter post for mounting RZ-B body
- Painted Steel Base
- Base dimensions : 10” x 10” x 1”

LBS-Post: Linear Bearing Boom Stand
Price: ~~$1,010.00~~
Sale Price:$650.00

- 16” Double Boom Arms ride on linear ball bearings
- 18” Vertical Post
- Lock Collar
- Includes 32mm diameter post for mounting RZ-B body
- Painted Steel Base
- Base dimensions : 12” x 12” x 1”

MA578 : Graduated Mechanical Stage
Price: ~~$595.00~~
Sale Price:$535.00

- For RZP model stage
- 0.1mm graduations with coaxial controls
- 116mm x 137mm work surface with stage clips
- 50mm x 75mm X-Y travel

Manufacturer: Meiji Techno

MA578/05 : Graduated Mechanical Stage
Price: ~~$620.00~~
Sale Price:$550.00

- For RZT, RZBD, RZDT model stages
- 0.1mm graduations with coaxial controls
- 116mm x 137mm work surface with stage clips
- 50mm x 75mm X-Y travel
- 74mm x 96mm clear glass plate for transmitted light

Manufacturer: Meiji Techno

MA565 : Sliding Mechanical Stage
Price: ~~$535.00~~
Sale Price:$480.00

- For RZP model stage
- 125mm x 170mm work surface with stage clips
- 100mm x 100mm X-Y travel
- Finger tip control

Manufacturer: Meiji Techno

MA565-05 : Sliding Mechanical Stage
Price: ~~$570.00~~
Sale Price:$513.00

- For RZT, RZBD, RZDT model stages
- 125mm x 170mm work surface with stage clips
- 100mm x 100mm X-Y travel
- Finger tip control
- 94.5mm diameter clear glass plate for transmitted light

Manufacturer: Meiji Techno

: PDF DATA SHEET:

RZ Specifications

OPTIONS:
OTHER Stereozoom MODELS
• 8:1 Stereozoom : 0.65x – 5x modular dual parallel stereozoom (8:1 zoom ratio)

• 7:1 Stereozoom: 0.65x-4.5x stereozoom with trinocular options (7:1 zoom ratio)

• SZ4 Stereozoom : 4:1 zoom model in the classic ‘industry standard’ design

• Digital Cameras : Various model Lumenera cameras for trinocular models

• Fiber Optic Illumination Systems : Variety of fiber optic lighting sources and fibers

• Fluorescent Ring Illuminators : Provide even lighting; available in fixed and variable intensity models
