PIXERA DIGITAL RESEARCH CAMERAS

Products Catalog» DIGITAL IMAGING» Digital Microscope Camera Overview» Research Grade» PIXERA DIGITAL RESEARCH CAMERAS

PIXERA Digital Research Cameras; available in 1.5 megapixel and 6 megapixel CCD models, color or monochrome, cooled (150cl, 150clm, 60cl, 600clm) and uncooled sensors (150es, 150esm, 600es, 600esm) – excellent for fluorescence applications

GENERAL FEATURES:

• PCI Interface (requires full size slot)
10 foot cable included (25 foot optional)
• Scientific grade 0 defect CCD sensors

• Peltier cooled (-25˚C) models available

• Color or Monochrome CCD models

• Individually characterized; CD provided

• Fast frame-rate; 15 fps @ 640x480

• Ultra-high sensitivity; 0.002 lux models

• Very Intuitive user interface features:
Frame averaging
Frame integration
Histogram
Image database
Measurement and counting

• NIC-150 model built for Nyoptics by Pixera
NIC-150 not scientific graded sensor
Default characterization

• Multi-platform software support
Windows 98/Me/NT/2000/Xp/XpPro
MAC Os 9 / Os X

PIXERA Research Camera models:

Pixera digital cameras utilize the highest quality sensors and top quality packaging to achieve superb imaging for research and fluorescence applications. The sensors are hand selected for 0 defective pixels, color saturation, and high sensitivity. Each Pixera camera is supplied with an individual characterization CD to achieve the highest performance possible. A patented DiRactor™ optical shift component in the 600 series provides higher true resolution while maintaining high sensitivity and low noise. The DiRactor™ design does not suffer from the mosaic and thermal noise problems found in other manufacturers ‘pixel shifting’ cameras and maintains full thermal transfer from the sensor chip for the best sensor performance in cooled and un-cooled models.

MODELS:

oem/pixera600cl-sm.jpg

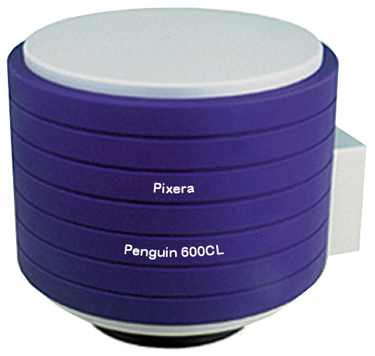

600CL: 5.8 MPixel ½” color (0.01 lux)
Price: ~~$7,000.00~~
Sale Price:$5,950.00

- ½” color CCD sensor (2776 x 2048)
- Utilizes Pixera’s patented DiRactor™
- Peltier cooled sensor (-25˚ C)
- Very-high sensitivity (0.01 lux)
- Research Grade Sensor – 0 defective pixels
- Complete with PCI interface and 10 foot cable
- PC software: Win2000 / Xp / XpPr / Vista
- MAC software: Os9 / OsX

Manufacturer: Pixera Corp (USA)

oem/pixera600clm-sm.jpg

600CLm: 5.8 Mpixel ‘cooled’ ½” CCD monochrome
Price: ~~$7,000.00~~
Sale Price:$5,950.00

- ½” monochrome CCD sensor (2776 x 2048)
- Utilizes Pixera’s patented DiRactor™
- Peltier cooled sensor (-25˚ C)
- Ultra-high sensitivity (0.002 lux)
- Research Grade Sensor – 0 defective pixels
- Complete with PCI interface and 10 foot cable
- PC software: Win2000 / Xp / XpPr / Vista
- MAC software: Os9 / OsX

Manufacturer: Pixera Corp (USA)

oem/pixera_pro600-sm.jpg

600ES: 5.8 Mpixel ½” CCD color
Price: ~~$6,000.00~~
Sale Price:$5,100.00

- ½” color CCD sensor (2776 x 2048)
- Utilizes Pixera’s patented DiRactor™
- High sensitivity (0.05 lux)
- Research Grade Sensor – 0 defective pixels
- Complete with PCI interface and 10 foot cable
- PC software: Win2000 / Xp / XpPr / Vista
- MAC software: Os9 / OsX

Manufacturer: Pixera Corp (USA)

600ESm: 5.8 Mpixel ½” CCD monochrome
Price: ~~$6,000.00~~
Sale Price:$5,100.00

- ½” monochrome CCD sensor (2776 x 2048)
- Utilizes Pixera’s patented DiRactor™
- Very-high sensitivity (0.01 lux)
- Research Grade Sensor – 0 defective pixels
- Complete with PCI interface and 10 foot cable
- PC software: Win2000 / Xp / XpPr / Vista
- MAC software: Os9 / OsX

Manufacturer: Pixera Corp (USA)

oem/pixera150cl-sm.jpg

150CL: 1.5 MPixel ½” CCD color
Price: ~~$5,000.00~~
Sale Price:$4,250.00

- ½” color CCD sensor (1392 x 1040)
- Peltier cooled sensor (-25˚ C)
- Very-high sensitivity (0.01 lux)
- Research Grade Sensor – 0 defective pixels
- Complete with PCI interface and 10 foot cable
- PC software: Win2000 / Xp / XpPr / Vista
- MAC software: Os9 / OsX

Manufacturer: Pixera Corp (USA)

150CLm: 1.5 MPixel ½” CCD monochrome (0.002 lux)
Price: ~~$5,000.00~~
Sale Price:$4,250.00

- ½” color CCD sensor (1392 x 1040)
- Peltier cooled sensor (-25˚ C)
- Very-high sensitivity (0.01 lux)
- Research Grade Sensor – 0 defective pixels
- Complete with PCI interface and 10 foot cable
- PC software: Win2000 / Xp / XpPr / Vista
- MAC software: Os9 / OsX

Manufacturer: Pixera Corp (USA)

oem/pixera_pro600-sm.jpg

150ES: 1.5 MPixel ½” CCD Color
Price: ~~$4,000.00~~
Sale Price:$3,400.00

- ½” color CCD sensor (1392 x 1040)
- High sensitivity (0.05 lux)
- Research Grade Sensor – 0 defective pixels
- Complete with PCI interface and 10 foot cable
- PC software: Win2000 / Xp / XpPr / Vista
- MAC software: Os9 / OsX
- Note: Pro600ES shown (housing is the same as Pro150ES)

Manufacturer: Pixera Corp (USA)

150ESm: 1.5 MPixel ½” CCD monochrome (0.01 lux)
Price: ~~$4,000.00~~
Sale Price:$3,400.00

- ½” monochrome CCD sensor (1392 x 1040)
- Very-high sensitivity (0.01 lux)
- Research Grade Sensor – 0 defective pixels
- Complete with PCI interface and 10 foot cable
- PC software: Win2000 / Xp / XpPr / Vista
- MAC software: Os9 / OsX

Manufacturer: Pixera Corp (USA)

NIC-150: 1.5 Mpixel ½” CCD color
Price: ~~$2,895.00~~
Sale Price:$2,495.00

- ½” color CCD sensor (1392 x 1040)
- Custom built for us by Pixera
- High sensitivity (0.06 lux)
- Non-research Graded Sensor (uses 150ES sensor, not screened)
- Provides 150ES performance at a reduced cost for non-critical apps
- Complete with PCI interface and 10 foot cable
- PC software: Win2000 / Xp / XpPr / Vista
- MAC software: Os9 / OsX

Manufacturer: Pixera Corp (USA)

CAMERA ACCESSORIES

CAMERA SOFTWARE PACKAGES

oem/pixera-handswitch-small.jpg

Hand-switch: Remote camera hand control
Price: $295.00

- Allows remote control of camera
- Exposure control
- Spot Metering selection
- AutoExposure lock
- 6 foot interface cable connects to PCI card DIN input

Foot-switch: Remote camera foot switch
Price: $295.00

- Provides remote camera capture by foot control
- Excellent for applications performing many captures (pathology)
- 6 foot interface cable connects to PCI card DIN input

oem/1caswitchbox.jpg

Camera Switchbox: Multi-camera switchbox
Price: $500.00

- Allows multiple cameras to be connected to same computer
- Includes additional 9 foot interface cable

oem/pixera_l_connector-small.jpg

L-connector: 90° interface cable adapter
Price: $250.00

Camera Adapters Modular Microscope C-mount

- C-mount adapters for universal applications and specific microscope models - Use ½” sensor adapters (SC50) with Pixera 150-600 series, NIC150 models
- Modular design allows relocating camera between multiple microscopes

Click here for Camera Adapters

: PDF DATA SHEET:

150/600CL series Data sheet
150/600ES series Data sheet
600CLm Data sheet
150ESm Data sheet
Hand-switch Data sheet
Foot-switch Data sheet
Camera switchbox Data sheet
‘L’ connector Data sheet
IMT software data sheet
StreamPix software data sheet

OPTIONS:
