MEIJI MT8000 Metallurgical Microscopes

Products Catalog» Microscopes» INDUSTRIAL Compound» Meiji MT8000 Brightfield - Reflected

Products Catalog» MICROSCOPES by SPECIALTY» Semiconductor Inspection» Meiji MT8000 Brightfield - Reflected

MEIJI MT8000 Metallurgical Microscope; for transmitted and reflected brightfield observation, infinity corrected Plan optics

GENERAL FEATURES:

• Brightfield and Simple POL modes

• Transmitted and Reflected light observation

• New design Brightfield Plan optics
- Infinity corrected ICOS series

• 30W Koehler reflected light illumination
- Built-in base for compact footprint

• Siedentopf design view heads
- Optional tilting model

• Widefield High eyepoint eyepieces

• ALL series come standard with:
- 4” x 4” travel stage
- 5/10/20/50X objectives
- SWH10/22 eyepieces
- Quintuple nosepiece
- Blue,Green,ND50,POL filter set

• Dimensions (D x W) : 263mm x 176mm

• Manufacturer: Meiji Techno - Japan

Meiji MT8000 Brightfield Microscope:

The Meiji MT8000 microscope offers transmitted and reflected light brightfield observation. The series utilizes an all new design of infinity corrected, brightfield EPI plan optics. These infinity corrected optics combined with Koehler illumination provide excellent clarity, contrast, and flat field for metallurgical microscopy. Excellent choice for brightfield semiconductor and mask inspection. Auto-sensing power supply assures worldwide operation.

MODELS:

MT8000 Configuration: Brightfield - Binocular
Price: ~~$6,700.00~~
Sale Price:$5,829.00

- Siedentopf Binocular View Head (MA815)
- SWH10X/220 eyepiece F.N 22 (MA817)
- Plan Epi 5X / 0.10 Brightfield objective, WD = 20mm (MA870)
- Plan Epi 10X / 0.25 Brightfield objective, WD = 7.48mm (MA871)
- Plan Epi 20X / 0.40 Brightfield objective, WD = 5.20mm (MA872)
- Plan Epi 50X / 0.75 Brightfield objective, WD = 0.38mm (MA873)
- Stage: 4” x 4” travel ceramic coated flat top (MA942)
- 6V 30W Halogen Koehler vertical Illuminator (MA927)

Manufacturer: Meiji Techno

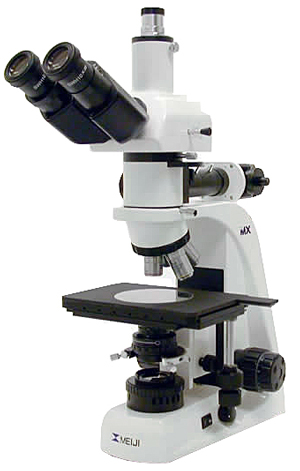

MT8100 Configuration: Brightfield - Trinocular
Price: ~~$6,900.00~~
Sale Price:$5,995.00

- Siedentopf Trinocular View Head (MA816)
- SWH10X/220 eyepiece F.N 22 (MA817)
- Plan Epi 5X / 0.10 Brightfield objective, WD = 20mm (MA870)
- Plan Epi 10X / 0.25 Brightfield objective, WD = 7.48mm (MA871)
- Plan Epi 20X / 0.40 Brightfield objective, WD = 5.20mm (MA872)
- Plan Epi 50X / 0.75 Brightfield objective, WD = 0.38mm (MA873)
- Stage: 4” x 4” travel ceramic coated flat top (MA942)
- 6V 30W Halogen Koehler vertical Illuminator (MA927)

Manufacturer: Meiji Techno

MA815: Binocular View Head
Price: ~~$480.00~~
Sale Price:$430.00

- Siedentopf design
- 30° inclined
- Interpupillary range : 53mm - 75mm
- Graduated diopter on left eyetube (30mm eyetube)
- Eyepieces not included

Manufacturer: Meiji Techno

MA816: Trinocular View Head
Price: ~~$680.00~~
Sale Price:$612.00

- Siedentopf design
- 30˚ inclined
- Interpupillary range : 53mm – 75mm
- Graduated diopter on left eyetube (30mm eyetube)
- Eyepieces not included

Manufacturer: Meiji Techno

MA957: ERGONOMIC binocular View Head
Price: ~~$780.00~~
Sale Price:$702.00

- Siedentopf design
- Tilting range10˚ to 30˚ incline
- Interpupillary range : 53mm – 75mm
- Graduated diopter on left eyetube (30mm eyetube)
- Eyepieces not included

Manufacturer: Meiji Techno

MODULAR ACCESSORIES

MA927: Vertical Illuminator module (Brightfield)
Price: ~~$900.00~~
Sale Price:$810.00
- 6v 30w lamphousing
- These items are included standard on MX7000 and MX7100 models

Manufacturer: Meiji Techno

oem/na.jpg

MA958: Photo/Video Attachment for ERGO head (MA957)
Price: ~~$500.00~~
Sale Price:$450.00
- 80/20 sliding beam-splitter
- Necessary for camera use with ergonomic (tilting) head

Manufacturer: Meiji Techno

oem/na.jpg

MA942 : Mechanical stage
Price: ~~$600.00~~
Sale Price:$540.00
- 4” x 4” travel ceramic coated
- Flat top plate

Manufacturer: Meiji Techno

oem/na.jpg

MA709: Dust cover
Price: ~~$12.00~~
Sale Price:$10.00

: PDF DATA SHEET:
Meiji MT8000 Specifications.PDF

OPTIONS:
OTHER Related Items:

• Digital Cameras : Various model Lumenera cameras

• Fiber Optic Illumination Systems : Variety of fiber optic lighting sources and fibers
