MEIJI MT7500 Metallurgical Microscopes

Products Catalog Microscopes INDUSTRIAL Compound Meiji MT7500

Products Catalog MICROSCOPES by SPECIALTY Semiconductor Inspection Meiji MT7500


MEIJI MT7500 Metallurgical Microscope; brightfield / darkfield reflected light microscope, Meiji, MT7500, MT7520, 75300
GENERAL FEATURES:

Brightfield, Darkfield, Simple POL modes

Reflected light observation

New design Brightfield/darkfield Plan optics
- Infinity corrected ICOS series

50W Koehler reflected light illumination
- Built-in base for compact footprint

Siedentopf design view heads
- Optional tilting model

Widefield High eyepoint eyepieces

ALL series come standard with:
- 4 x 4 travel stage
- 5/10/20/50X objectives
- SWH10/22 eyepieces
- Quadruple nosepiece
- Blue,Green,ND50,POL filter set

Dimensions (D x W) : 263mm x 176mm

Manufacturer: Meiji Techno - Japan

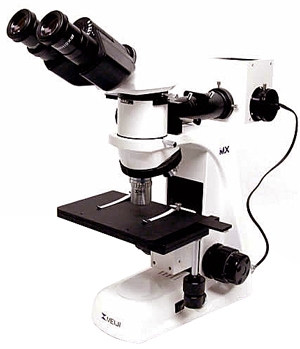

Meiji MT7500 Brightfield/Darkfield Microscope:

The Meiji MT7500 microscope utilizes an all new design of infinity corrected, brightfield/darkfield EPI plan optics. These Meiji designed infinity corrected optics combined with Koehler illumination provide excellent clarity, contrast, and flat field for metallurgical microscopy. Excellent choice for semiconductor inspection. Auto-sensing power supply assures worldwide operation.

MODELS:


  QUICKORDER CONFIGURATIONS



MT7520 Configuration: Brightfield / Darkfield - Binocular
MSRP: $8,300.00
Our Price:$7,220.00

- Siedentopf Binocular View Head (MA815)
- SWH10X/220 eyepiece F.N 22 (MA817)
- Plan Epi 5X / 0.10 BD objective, WD = 17mm (MA923)
- Plan Epi 10X / 0.25 BD objective, WD = 7.48mm (MA924)
- Plan Epi 20X / 0.40 BD objective, WD = 5.20mm (MA925)
- Plan Epi 50X / 0.75 BD objective, WD = 0.38mm (MA926)
- Stage: 4 x 4 travel ceramic coated flat top (MA942)
- 12V 50W Halogen Koehler vertical Illuminator (MA928)



Manufacturer: Meiji Techno




MT7530 Configuration: Brightfield / Darkfield - Trinocular
MSRP: $8,500.00
Our Price:$7,395.00

- Siedentopf Trinocular View Head (MA816)
- SWH10X/220 eyepiece F.N 22 (MA817)
- Plan Epi 5X / 0.10 BD objective, WD = 17mm (MA923)
- Plan Epi 10X / 0.25 BD objective, WD = 7.48mm (MA924)
- Plan Epi 20X / 0.40 BD objective, WD = 5.20mm (MA925)
- Plan Epi 50X / 0.75 BD objective, WD = 0.38mm (MA926)
- Stage: 4 x 4 travel ceramic coated flat top (MA942)
- 12V 50W Halogen Koehler vertical Illuminator (MA928)


Manufacturer: Meiji Techno





  OPTICAL COMPONENTS: (Build up your own configuration)



MA815: Binocular View Head
MSRP: $480.00
Our Price:$430.00

- Siedentopf design
- 30 inclined
- Interpupillary range : 53mm - 75mm
- Graduated diopter on left eyetube (30mm eyetube)
- Eyepieces not included



Manufacturer: Meiji Techno




MA816: Trinocular View Head
MSRP: $680.00
Our Price:$612.00

- Siedentopf design
- 30˚ inclined
- Interpupillary range : 53mm 75mm
- Graduated diopter on left eyetube (30mm eyetube)
- Eyepieces not included



Manufacturer: Meiji Techno




MA957: ERGONOMIC binocular View Head
MSRP: $780.00
Our Price:$702.00

- Siedentopf design
- Tilting range10˚ to 30˚ incline
- Interpupillary range : 53mm 75mm
- Graduated diopter on left eyetube (30mm eyetube)
- Eyepieces not included



Manufacturer: Meiji Techno




oem/na.jpgEyepieces : (30.0 mm O.D Eyetube)




planepi_bd_objectives-sm.jpgObjectives: Brightfield / Darkfield, EpiPlan, Infinity corrected.





  MODULAR ACCESSORIES



ma928_bd_vertical-sm.jpgMA928 - These items are included standard on MX7520 and MX7530 models




oem/na.jpg
MA958: Photo/Video Attachment for ERGO head (MA957)
MSRP: $500.00
Our Price:$450.00
- 80/20 sliding beam-splitter
- Necessary for camera use with ergonomic (tilting) head

Manufacturer: Meiji Techno




metallurgical_std_filters-s.jpgCoaxial Filter Sets MEIJI




oem/meiji_cmount_lens-large1.jpgC-Mount Video Lenses
-Use with Model IM7200 Microscope
-Use with MA816/10 trinocular head option





  STANDS & STAGES



oem/na.jpg
MA942 : Mechanical stage
MSRP: $600.00
Our Price:$540.00
- 4 x 4 travel ceramic coated
- Flat top plate

Manufacturer: Meiji Techno




meiji_lwd_bf_obj-sm.jpgObjectives : Brightfield, EpiPlan, Infinity Corrected




infinity1-product-1.jpgInfinity 1

- Includes imaging and archiving software (Windows Xp, 2000, Vista)
- USB2.0 high speed interface required
- Use with 0.5x C-mount adapter #3136010 not included






cross-line_reticle_nosc-sm.jpgEYEPIECE RETICLES Cross line (no scale)
-For MA817 & MA859 eyepieces (25mm diameter) use MA523 : Crossline
-For MA818 & MA819 eyepieces (19mm diameter) use MA279 : Crossline




infinity2-1.jpgInfinity 2

- Higher low light sensitivity than CMOS cameras (excellent for phase contrast)
- Includes imaging and archiving software (Windows Xp, 2000, Vista)
- USB2.0 high speed interface required
- Use with 0.5x C-mount adapter #3136010 not included






oem/xaxis_graduated_reticle-lg1.jpgEYEPIECE RETICLES Linear scale

For MA817 & MA859 eyepieces (25mm diameter) use MA506 : 10mm divided into 100 units or MA509 : 5mm divided into 100 units

For MA818 & MA819 eyepieces (19mm diameter) use MA280 : 10mm divided into 100 units or MA281 : 5mm divided into 100 units






Stage Micrometer Metal for reflected light





oem/cross-line_reticle_grad1.jpgEYEPIECE RETICLES Cross scale

For MA732 & MA734 eyepieces (19mm diameter)
For MA817 & MA859 eyepieces (25mm diameter) use MA542 : Cross-line with 0.1mm ticks
For MA818 & MA819 eyepieces (19mm diameter) use MA539 : Cross-line with 0.1mm ticks






oem/na.jpg
MA709: Dust cover
MSRP: $12.00
Our Price:$10.00






312086.jpgHalogen Lamp




: PDF DATA SHEET:
 Meiji MT7500 Specifications.PDF



OPTIONS:
OTHER Related Items:

Digital Cameras : Various model Lumenera cameras

Fiber Optic Illumination Systems : Variety of fiber optic lighting sources and fibers
