Macro-zoom Video Inspection Systems

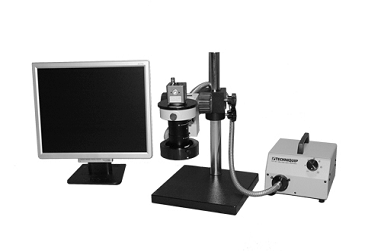

Products Catalog Macro-Zoom Inspection Products Video Macro-Zoom Inspection Systems


Video 10:1 Macro-Zoom Inspection Systems, Ergonomic inspection based on NTSC or PAL video cameras. Magnifications to 100x. Ideal for biomedical device inspection.
GENERAL FEATURES:

Economical Ergonomic inspection

Reduce Workman Comp Insurance Claims

Variable 10:1 zoom optical system

- Working distance range 7 18

- Magnification range @ 18 : 1.3x 13x

- Magnification range @ 7 : 5.0x 50x

Magnifications from 1.3x to 100x possible

Adjustable large depth of field

S-video or Digital camera Models

Variety of lighting options:
- LED ring light
- fluorescent
- Fiber optic annular or gooseneck

Optional 1.5x or 2x magnification extenders



Wide Range Inspection with comfort

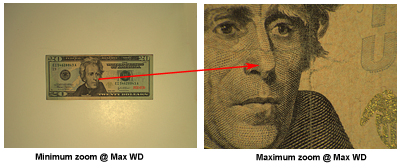

Our systems can be used to resolve many costly ergonomic inspection issues. The camera/lense module is mounted on a very stable boom arm stand which allows a wide range of working clearance options: close (7) for maximum magnification or further away when additional room is needed for operations such as soldering or rework. The 18 reach boom-arm can be swung out of the way when not needed. The lense system provides a 10:1 zoom with a wide range of magnifications possible (1.3x 50x) depending on working distance. We also offer optional/removable optical extenders (1.5x and 2x) when greater magnifications are needed. The following images represent the effective overall magnification of the systems (without extender lenses) at both minimum working distance and maximum working distance.

NOTE: These images were taken with our digital inspection station and the actual image resolution of the video versions will be less but with the same field-of-view.




MODELS:


  QUICKORDER CONFIGURATIONS



VideoStationNTSC1 : S-video system - annular fiber ringlight
MSRP: $3,100.00
Our Price:$2,750.00
- High resolution (768x494) CCD camera with DSP (NTSC)
- 10:1 Zoom macro optics (working clearance adjustable 7 18)
- S-Video to VGA converter box
- 17 4:3 LCD monitor (VGA input)
- Boom arm stand with focus and camera adapter
- 150watt halogen light source (FOI-150)
- Glass fiber annular light guide w/36 cable (AN2-36-OID)
- Supplied with power supply and S-video cables
- OPTIONAL: Video Capture Module see below






VideoStationNTSC2 : S-video system - dual gooseneck fiber
MSRP: $2,995.00
Our Price:$2,650.00

- High resolution (768x494) CCD camera with DSP (NTSC)
- 10:1 Zoom macro optics (working clearance adjustable 7 18)
- S-Video to VGA converter box
- 17 4:3 LCD monitor (VGA input)
- Boom arm stand with focus and camera adapter
- 150watt halogen light source (FOI-150)
- Supplied with power supply and S-video cables
- Dual Gooseneck (18) fiber light guides with focus lenses (DGL-18)
- OPTIONAL: Video Capture Module see below








VideoStationNTSC3 : S-video system - fluorescent ring light
MSRP: $2,895.00
Our Price:$2,620.00

- High resolution (768x494) CCD camera with DSP (NTSC)
- 10:1 Zoom macro optics (working clearance adjustable 7 18)
- S-Video to VGA converter box
- 17 4:3 LCD monitor (VGA input)
- Boom arm stand with focus and camera adapter
- Supplied with power supply and S-video cables
- Variable high frequency fluorescent ringlight (TLC7)
- OPTIONAL: Video Capture Module see below








VideoStationNTSC4 : S-video system stand and optics only
MSRP: $1,795.00
Our Price:$1,595.00
- High resolution (768x494) CCD camera with DSP (NTSC)
- 10:1 Zoom macro optics (working clearance adjustable 7 18)
- Supplied with power supply and S-video cables
- Boom arm stand with focus and camera adapter
- Use your own S-video monitor or capture card and lighting







  ACCESSORIES:



DCG-200M: Multi-pattern digital video reticle generator
MSRP: $725.00
Our Price:$652.00

- Full digital circuitry for no signal degradation
- S-Video and composite inputs / outputs
- NTSC, PAL, EIA, CCIR signals
- Provides 7 different reticle patterns
- Membrane keypad with pattern lock
- Solid or dashed line choice
- White or black line options
- Power Supply included (120VAC)
- Dimensions: 5.75(W) x 4.25(L) x 1.38(H)



Manufacturer: Techniquip Corp (USA)




DVPG: Dual camera split screen reticle generator
Price: $1,575.00

- Integrated camera switcher, split screen, and adjustable video reticles
- Allows simultaneous viewing of two cameras
- Full digital circuitry for no signal degradation
- S-Video and RS170 composite inputs / outputs
- Auto-switching NTSC, PAL, EIA, CCIR signals
- Provides 7 different reticle patterns + no reticle
- Membrane keypad with pattern lock
- Solid or dashed line choice
- White or black line options
- 12 vdc power pupply included (120VAC)
- Dimensions: 7.50(W) x 4.25(L) x 1.38(H)



Manufacturer: Techniquip Corp (USA)




AN-2-PLZR : Polarizer / Analyzer (VideoStation1 only)
Price: $220.00

- Annular light guide polarizer to reduce reflections on reflective surfaces
- Installs on the annular fiber light of VideoStation1 systems only


Manufacturer: Techniquip Corp (USA)




15XOE: 1.5x optical extender increase the magnification by a factor of 1.5 (overall magnification 2x 75x approx.)
Price: $85.00

- Increases magnification by a factor of 1.5x (overall magnification approx. 2x 75x)
- May result in reduced edge definition of image and require more light
- Best suited for fiber optic light based systems






2XOE: 2x optical extender Increase the magnification by a factor of 2 (overall magnification 2.6 100x approx.)
Price: $95.00

- Increases magnification by a factor of 2x (overall magnification approx. 2.6x 100x)
- May result in reduced edge definition of image and require more light
- Best suited for fiber optic light based systems







  CONFIGURE YOUR OWN SYSTEM: Inspection Stations




Fiber Optic Illuminator Sources:


foi-150_lg.jpg150 WATT MODELS



Manufacturer: Techniquip Corp (USA)



  See FOI Filters & Accessories:

Complete a selection of IR, color, and neutral density filters as well as replacement parts.

TLC-7: 115 VAC dimmable, XTL lamp
MSRP: $435.00
Our Price:$391.00
- High frequency fluorescent light system with variable intensity
- Recommended for all fluorescent video applications for no-flicker viewing on the monitor


Manufacturer: Techniquip Corp (USA)




16517-wtl-large-sm.jpgReplacement Lamp for fluorescent ringlight:




replacement-lamp.jpgReplacement Lamp for fiberoptic illuminator:




: PDF DATA SHEET:
 N/A



OPTIONS:

Digital Inspection Stations: Digital versions of the above systems with a variety of digital camera choices
DCG-200M: Digital Cross Hair Generator for S-video systems; provides 7 movable on-screen reticles
SVGA-1000: S-Video to VGA converter box; converts S-video signal to standard VGA monitor signal
FOI Custom light guides: Order custom sizes and types
FOI Standard fibers: Complete selection of gooseneck fiber models
FOI Custom light guides: Contact us with your requirements
FOI Filters & Accessories: Complete selection of filters and replacement parts
