GENERAL FEATURES:
Integral USB2.0 720 x 480 CCD camera
Live, still, video, time-lapse modes
Semi-Plan DIN objective lenses
Phase, darkfield, polarizing upgrade kits
Quadruple Reverse angle nosepiece
Universal power (110-240vac) UL/CE
12v 20w halogen illumination
Mechanical stage 150mm x 135mm
XY travel 76mm x 50mm (ball-bearing)
DigiPro 4.0 Image Analysis Software
Windows 98SE/ME/2000/Xp
(see computer needs in DigiPlus spec sheet
|
|
|

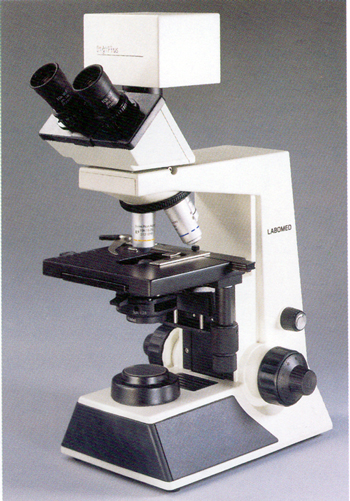

DigiPlus Digital Clinical model:
The DigiPlus combines the CXR2 series optics with an integrated
CCD color camera for a complete image capture/display system utilizing your
computer (see spec sheet for computer requirements) or external video monitor.
The included imaging software offers powerful processing tools for measuring,
enhancement, multi-focus layer stacking, and more. The DigiPlus is an excellent
teaching tool allowing group viewing of specimens using the composite video
output.
|
MODELS:
|
3123500: DigiPlus Binocular
Price: $9,999.99
45 head, WF10x/18 eyepieces, 4/10/40/100(oil) DIN Semi-Plan objective lenses
Manufacturer: Labo America (Labomed)
|
|
 |
3126000: CXR2 Phase Contrast Kit
Price: $458.00
Phase objectives; 10x, 40x
10x phase slider with BF stop
40x phase slider with BF stop
Phase annulus centering tools
Phase telescope
Green filter
|
|
 |
3126055: Polarizing Kit
Price: $66.00
- Simple polarizer
- Analyzer
|
|
|
 :
PDF DATA SHEET:
DigiPlus Spec Sheet |
|
|
|
|
|
