IR INSPECTION MICROSCOPES

Products Catalog MICROSCOPES by SPECIALTY IR Microscopes IR Inspection Microscopes


IR INSPECTION MICROSCOPES, IR inspection, IR silicon inspection, forensic, IR forensic, GSR, gunshot residue, gun shot residue, silicon wafer inspection
GENERAL FEATURES:

Built to meet your needs

Compound and Low power zoom models
- 16:1 Zoom models to 16 field-of-view
- Compound models to 1000x

Custom Systems Applications:
- semiconductor
-forensics

Analog or digital cameras available

Can configure for 4 12 wafers


Infra-Red Microscopes:

We can design and build IR inspection systems to fit your specific requirements. Above is an example of a basic compound system for semiconductor inspection. We can build to accommodate all wafer sizes and materials. We also offer motorized low power zoom models which can be configured for applications such as GSR (gun shot residue) and general forensic applications requiring large fields-of-view. Compound system prices start at $7000. To ensure proper configuration, please contact us with your requirements.

Contact us with your requirements



MODELS:


  SAMPLE SYSTEMS:

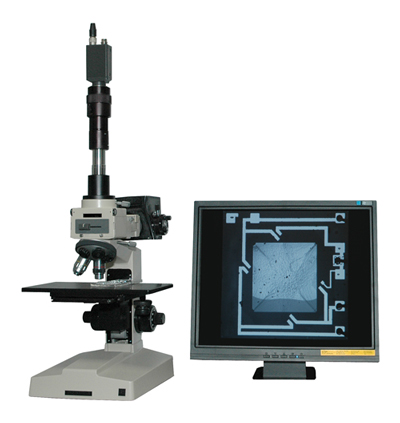

oem/ir-bh2system-sm2.jpg COMPOUND IR Reflected Light System - Semiconductor


- Note the RTV contacting the diaphragm in upper left corner
- Inspection via topside reflected IR light

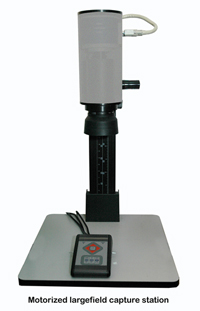

oem/path-station-sm.jpg 16:1 LARGEFIELD Zoom IR capture workstation - Forensic


- Motorized functions; focus, zoom, aperature
- Digital or Analog video camera options
- Reflected incident IR, transmitted IR, Annular IR ringlight options
- IR and visible light use
- Digital or Analog video camera options
- Use on customers existing photo stand (1/4-20 MT) or we can supply








  EXAMPLE APPLICATIONS IMAGES

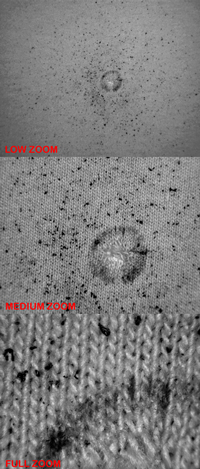

gsr-zoomsystem-images-sm.jpg EXAMPLE of IR inspection of Gun Shot Residue (GSR)


- Inspection in IR using 16:1 zoom inspection station
- GSR very visible in IR on dark blue shirt (example left)
- 38 caliber bullet penetration marks very clear
- Field-of-View zoom range 0.5 8 as configured









oem/irsensorrtv-sm.jpg EXAMPLE of IR inspection of silicon pressure sensor @ 50x


- Note the RTV contacting the diaphragm in upper left corner
- Inspection via topside reflected IR light
