MEIJI IM7000 Inverted Metallurgical Microscope

Lead Time:

Products Catalog» Microscopes» INDUSTRIAL Compound» Meiji IM7000 Inverted Brightfield

Products Catalog» MICROSCOPES by SPECIALTY» Semiconductor Inspection» Meiji IM7000 Inverted Brightfield

MEIJI IM7000 Inverted Metallurgical Microscope,Inverted metallurgical microscope, cross-section microscope, semiconductor microscope, metal grain microscope, reflected light inverted microscope, Meiji, IM7000, IM8100, IM8200
GENERAL FEATURES:

• Brightfield and Simple POL modes

• Infinity corrected Brightfield Plan optics

• 30W Koehler reflected light illumination
- Built-in base for compact footprint

• Siedentopf design view heads
- Optional tilting ERGO model

• Widefield High eyepoint eyepieces

• ALL series come standard with:
- 5/10/20/50X objectives
- SWH10/22 eyepieces
- Quintuple nosepiece
- Front mounted photo-port
- Blue,Green,ND50,POL filter set

• Optional mechanical stage, 100x objective

• Dimensions (D x W) : 263mm x 176mm


IM7000 Inverted Brightfield Microscope:

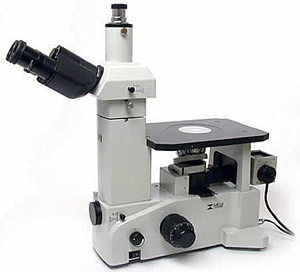

The IM7000 inverted microscope series utilizes an all new design of infinity corrected, brightfield EPI plan optics. These infinity corrected optics combined with Koehler illumination provide excellent clarity, contrast, and flat field for metallurgical microscopy. Excellent choice for cross-section and metallurgy applications. Auto-sensing power supply assures worldwide operation.



MODELS:

IM7100 Configuration: Brightfield - Binocular
Price: $6,000.00   Sale Price:$5,400.00

- Siedentopf Binocular View Head (MA814)
- SWH10X/220 eyepiece F.N 22 (MA817)
- Plan Epi 5X / 0.10 Brightfield objective, WD = 20mm (MA870)
- Plan Epi 10X / 0.25 Brightfield objective, WD = 7.48mm (MA871)
- Plan Epi 20X / 0.40 Brightfield objective, WD = 5.20mm (MA872)
- Plan Epi 50X / 0.75 Brightfield objective, WD = 0.38mm (MA873)
- Plain Stage: 180mm x 245mm flat top
- 6V 30W Halogen Koehler vertical Illuminator



IM7200 Configuration: Brightfield - Trinocular
Price: $6,280.00   Sale Price:$5,652.00

- Siedentopf Trinocular View Head (MA816/10)
- SWH10X/220 eyepiece F.N 22 (MA817)
- Plan Epi 5X / 0.10 Brightfield objective, WD = 20mm (MA870)
- Plan Epi 10X / 0.25 Brightfield objective, WD = 7.48mm (MA871)
- Plan Epi 20X / 0.40 Brightfield objective, WD = 5.20mm (MA872)
- Plan Epi 50X / 0.75 Brightfield objective, WD = 0.38mm (MA873)
- Plain Stage: 180mm x 245mm flat top
- 6V 30W Halogen Koehler vertical Illuminator



MA814: Binocular View Head
Price: $400.00   Sale Price:$360.00

- Siedentopf design
- 30˚ inclined
- Interpupillary range : 53mm – 75mm
- Graduated diopter on left eyetube (30mm eyetube)
- Eyepieces not included



MA816/10: Trinocular View Head
Price: $680.00   Sale Price:$612.00

- Siedentopf design
- 30˚ inclined
- Interpupillary range : 53mm – 75mm
- Graduated diopter on left eyetube (30mm eyetube)
- Eyepieces not included



MA957/15: ERGONOMIC binocular View Head
Price: $680.00   Sale Price:$612.00

- Siedentopf design
- Tilting range10˚ to 50˚ incline
- Interpupillary range : 53mm – 75mm
- Graduated diopter on left eyetube (30mm eyetube)
- Eyepieces not included



oem/na.jpgEyepieces : (30.0 mm O.D Eyetube)







meiji_lwd_bf_obj-sm.jpgObjectives : Brightfield, EpiPlan, Infinity Corrected







metallurgical_std_filters-s.jpgFilter (20mm in metal mount)







MA877 : C-mount 0.66x adapter
Price: $50.00   Sale Price:$45.00

- Allows camera use of front port
- For CCD/CMOS C-mount cameras
- No internal lense; 0.66X magnification factor



MA875 : Mechanical stage
Price: $600.00   Sale Price:$540.00

- 112mm (X) x 71mm (Y) travel with drop-down coaxial drive
- Attaches to standard flat top stage plate



oem/na.jpg
MA876 : Metal stage plate insert
Price: $30.00   Sale Price:$27.00

- Round 109mm x 1.5mm thick
- 58mm insert opening, 16mm sample/objective opening



cross-line_reticle_nosc-sm.jpgEYEPIECE RETICLES – Cross line (no scale)



-For MA817 & MA859 eyepieces (25mm diameter) use MA523 : Crossline
-For MA818 & MA819 eyepieces (19mm diameter) use MA279 : Crossline



oem/xaxis_graduated_reticle-lg1.jpgEYEPIECE RETICLES – Linear scale



For MA817 & MA859 eyepieces (25mm diameter) use MA506 : 10mm divided into 100 units or MA509 : 5mm divided into 100 units

For MA818 & MA819 eyepieces (19mm diameter) use MA280 : 10mm divided into 100 units or MA281 : 5mm divided into 100 units





oem/cross-line_reticle_grad1.jpgEYEPIECE RETICLES – Cross scale



For MA732 & MA734 eyepieces (19mm diameter)
For MA817 & MA859 eyepieces (25mm diameter) use MA542 : Cross-line with 0.1mm ticks
For MA818 & MA819 eyepieces (19mm diameter) use MA539 : Cross-line with 0.1mm ticks





oem/grid_reticle-lg1.jpgEYEPIECE RETICLES – Grid scale For MA817 & MA859 eyepieces (25mm diameter)







oem/na.jpgEYEPIECE RETICLES – Grain sizing - For MA817 & MA859 eyepieces (25mm diameter)







Stage Micrometer – Metal for reflected light







oem/na.jpg
MA709: Dust cover
Price: $7.00   Sale Price:$6.00
