Oem-Optical DIGITAL CROSSHAIR GENERATOR

Products Catalog» VIDEO IMAGING (NTSC/PAL)» S-video Interface Items» Oem-Optical DIGITAL CROSSHAIR GENERATOR


DCG-200M, Crosshair generator, video crosshair, reticle generator, DCG-200M, DCG-100A, video inspection, on-screen reticle, video reticle, video crossline generator, marking live video, s-video crosshair, composite video crosshair
Patterns, R-170 crosshair, NTSC video crosshair, SEM target, Techniquip, Boeckeler, Olympus microscope, Meiji microscope, Nikon microscope, Leica microscope, Zeiss microscopes
GENERAL FEATURES:

• S-video and RS170 composite inputs/outputs
- Accepts NTSC, PAL, EIA,CCIR (DCG-200M)


• Membrane keypad


• Stand-alone operation; no PC


• Inserts between analog camera and monitor


• All digital circuitry for no signal degradation


- Dual camera and dual pattern (DVPG only)


- 7 selectable patterns + no reticle


- Solid or dashed, black or white lines


• Lockable to prevent unintended changes
- On-screen programming


• Includes:
Power supply


• Made in the USA



Digital ON-Screen Reticle Generators

The Digital Crosshair Generator modules are designed for use in S-video and composite signal video systems to display a crosshair or reticle image on the live monitor view of an analog camera system. The digital video crosshair generator module is inserted in the signal path between the analog camera and the monitor using either an S-video or composite interface cables. We offer two models that offer a variety of features:

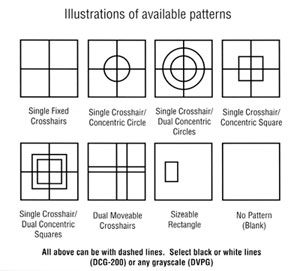

The DCG-200M creates seven different reticle patterns; single crosshair (rotatable), fixed in center single crosshair, dual crosshair, box, single crosshair with 2 sizeable circles, single crosshair with 2 sizeable squares and arrow pointer. The DCG-100A provides a single, fixed crosshair. Both models provide a choice of line types : solid white, solid black, dashed white, dashed black.


MODELS:


  Crosshair Generator MODELS:

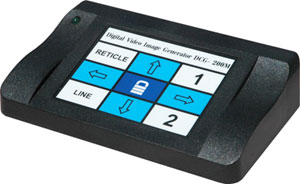

DCG-200M: Multi-pattern digital video reticle generator
MSRP: $725.00
Our Price:$652.00

- Full digital circuitry for no signal degradation
- S-Video and composite inputs / outputs
- NTSC, PAL, EIA, CCIR signals
- Provides 7 different reticle patterns
- Membrane keypad with pattern lock
- Solid or dashed line choice
- White or black line options
- Power Supply included (120VAC)
- Dimensions: 5.75”(W) x 4.25”(L) x 1.38”(H)



Manufacturer: Techniquip Corp (USA)




DVPG: Dual camera split screen reticle generator
Price: $1,575.00

- Integrated camera switcher, split screen, and adjustable video reticles
- Allows simultaneous viewing of two cameras
- Full digital circuitry for no signal degradation
- S-Video and RS170 composite inputs / outputs
- Auto-switching NTSC, PAL, EIA, CCIR signals
- Provides 7 different reticle patterns + no reticle
- Membrane keypad with pattern lock
- Solid or dashed line choice
- White or black line options
- 12 vdc power pupply included (120VAC)
- Dimensions: 7.50”(W) x 4.25”(L) x 1.38”(H)



Manufacturer: Techniquip Corp (USA)





  OTHER Video Accessories:



SVGA-1000: S-Video to VGA converter box
MSRP: $120.00
Our Price:$108.00

- Converts S-video signal to standard VGA monitor signal
- Allows use of standard VGA monitors and LCD panels
- Supports NTSC / PAL / SECAM; auto-detect
- De-interlace output supports: 640 x 480, 800 x 600, 1024 x 768
- Power Supply included (120VAC)
- VGA 15 pin to 15 pin cable included







CFP-100: S-Video compact flash capture module
MSRP: $725.00
Our Price:$652.00

- Supports S-video and composite (RCA) cameras and monitors
- Allows capture of  images from live sources onto Compact Flash (CF)
- Stored images can be viewed later on any PC using the supplied USB card reader
- Inserts between analog camera and monitor using S-video cables
- Supplied with power supply (120VAC), 128MB CF card, USB card reader






: PDF DATA SHEET:
 DCG-200M/DVPG Spec Sheet
 DCG-200M User Manual



OPTIONS:

DIGITAL VIDEO COMPONENTS
CCD Analog Cameras: We offer a selection of CCD video cameras for NTSC and PAL in various sensor size
Camera Lenses: Wide array of manual and motorized CBC/Computar camera lenses
Camera Adapters : C-mount adapters for all microscope makes and models
SVGA-1000: S-Video to VGA converter module; converts S-video signal to standard VGA monitor signal
CFP-100: Video Capture Module for S-video systems
Video Inspection Systems: Complete S-Video and Digital camera optical inspection systems
