Computar Motorized Lenses

Lead Time:

Products Catalog» VIDEO IMAGING (NTSC/PAL)» Computar Motorized Lenses

Products Catalog» DIGITAL IMAGING» Digital Camera Lenses» Computar Motorized Lenses

Computar Motorized Lenses, motorized zoom lense, motorized video lense, c-mount zoom lense, zoom lense controller, c57-709, c57-703, c57-706, c57-710, Computar, CBC, GANZ, Edmund Optical
GENERAL FEATURES:

• 8:1, 10:1, 16:1 Zoom Ratio models
- high performance optics
- ideal for megapixel cameras

• Motorized camera functions
- Zoom
- Focus
- IRIS

• C-mount ½” camera format

• Suitable for many imaging applications



Computer Motorized Zoom Lenses:

The Computer line of Motorized Zoom Lenses are designed for use with CCD digital and video cameras in a wide array of applications. Typical uses are surveillance, remote inspection, image processing, automated gauging, positioning, and other automation operations.



MODELS:


  MOTORIZED ½” MODELS:

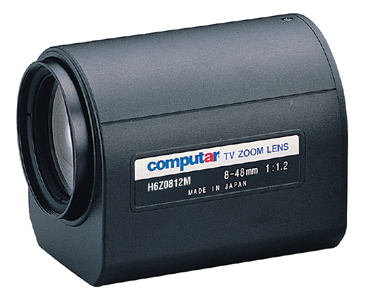

H6Z0812M: 8-48mm Motorized Zoom Lense
Price: $399.00   Sale Price:$359.00

- 3 motors; Focus, aperature, zoom
- 1/2” format
- C-mount
- Focal Length (mm) : 8-48 (6:1 zoom ratio)
- Aperature (F) : 1.2-16C
- Angle of View˚ (HOR) : 44.6-8.0
- M.O.D (m) : 1.2
- Effective Aperature -mm (front) : 39.2
- Effective Aperature - mm (rear) : 16.6
- Front Filter Thread (mm) : M49.0 x 0.75
- Dimensions - mm (Dia x Length) : 66 x 73 x 97
- Weight (g) : 400



H10Z0812M: 8-80mm Motorized Zoom Lense
Price: $599.00   Sale Price:$539.00

- 3 motors; Focus, aperature, zoom
- 1/2” format
- C-mount
- Focal Length (mm) : 8-80 (10:1 zoom ratio)
- Aperature (F) : 1.2-22C
- Angle of View˚ (HOR) : 44.0-4.7
- M.O.D (m) : 1.5
- Effective Aperature -mm (front) : 54.0
- Effective Aperature - mm (rear) : 14.0
- Front Filter Thread (mm) : M62.0 x 0.75
- Dimensions - mm (Dia x Length) : 70 x 81 x 123.5
- Weight (g) : 635




H10Z1218M: 12-120mm Motorized Zoom Lense
Price: $599.00   Sale Price:$539.00

- 3 motors; Focus, aperature, zoom
- 1/2” format
- C-mount
- Focal Length (mm) : 12-120 (10:1 zoom ratio)
- Aperature (F) : 1.8-22C
- Angle of View˚ (HOR) : 29.4-3.1
- M.O.D (m) : 1.5
- Effective Aperature -mm (front) : 54.0
- Effective Aperature - mm (rear) : 9.2
- Front Filter Thread (mm) : M62.0 x 0.75
- Dimensions - mm (Dia x Length) : 70 x 81 x 123.5
- Weight (g) : 635



H16Z7516M: 7.5-120mm Motorized Zoom Lense
Price: $1,350.00   Sale Price:$1,199.00

- 3 motors; Focus, aperature, zoom
- 1/2” format
- C-mount
- Focal Length (mm) : 7.5-120 (16:1 zoom ratio)
- Aperature (F) : 1.6-560C
- Angle of View˚ (HOR) : 46.6-3.2
- M.O.D (m) : 1.5
- Effective Aperature -mm (front) : 66.0
- Effective Aperature - mm (rear) : 13.5
- Front Filter Thread (mm) : M72.0 x 0.75
- Dimensions - mm (Dia x Length) : 82 x 97.4 x 149
- Weight (g) : 1050




  ZOOM LENSE CONTROLLERS:



CBZ-24: Zoom Lense Controller
Price: $299.00   Sale Price:$260.00

- Designed for simple, hardwire control applications
- Provides remote control for Computar motorized zoom lenses
- Six zoom lense control functions (zoom, focus, iris)
- Pan & Tilt control functions (24VAC output)
- Finish: Epoxy powder coated
- Construction: Extruded aluminum with rubber components
- Requires hardwire camera connection (connector not supplied)
- Requires 24VAC / 60Hz power supply (not included)
- Front Filter Thread (mm) : M49.0 x 0.75
- Dimensions - mm : 115 x 190 x 50mm
- Weight (g) : 305


C24AC: Power supply for CBZ-24 controller
Price: $25.00   Sale Price:$20.00

- 24VAC 20vA supply
- UL-listed plugs into standard 120VAC duplex wall receptacle
- Indoor use only



lenseextender-web.jpgLense Extenders: Use to increase focal length of fixed focus lenses (C or CS)







vm100-sm.jpgC-mount Spacer Kits: Use to adjust working distance (M.O.D) of lenses







: PDF DATA SHEET:
 Computar Lense Catalog.PDF
CBZ-24 Zoom Controller.PDF
