CAMERA ADAPTERS

Products Catalog DIGITAL IMAGING Camera Adapters

CAMERA ADAPTERS. Optical coupler, video coupler, microscope camera coupler, microscope camera mount, microscope camera adapter, SC50, SC67, SC38, Optem, Thales-Optem, Diagnostic Instruments, HR055, Olympus microscope, Meiji microscope, Nikon microscope, Leica microscope, Zeiss microscope

GENERAL FEATURES:

Interchaneable 2 Piece Modular Design
- Prevents obsolescence

Only requires new clamp for microscope change

Optical Couplers for various sensor sizes
- External parfocality adjustment (lockable)

Optical coupler can be inserted into 23mm eyepiece tube
- 30mm eyepiece port requires 30mm adapter sleeve

Clamps available for most microscopes
- Black anodized finish

21mm reticle can be installed in Optical Coupler

Top Quality Optics



All couplers are very high quality and compatible with scientific grade microscopes and cameras. The modular design allows for camera use on multiple microscopes simply by changing the clamp assembly to the specific make/model or by inserting into the microscope eyepiece port (23mm). 30mm eyepiece ports require the 30mm adapter sleeve.

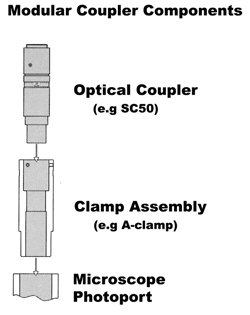

NEED 2 ITEMS for mounting a camera to your microscope


MODELS:


Optical Coupler (select model by camera sensor size)


Optical coupler models: (Require clamp assy see below)





Microscope Clamp (select microscope model)


oem/a-clamp1.jpg
A-clamp: Leica clamp for 37mm photoport
Price: $126.00

Fits LEICA models:
- DM L Series
- DM R Series
- DM RD (does not fit Photo TV module)
- FSA Tube Adapter
- TV Tube Adapter
- Variotube (all insert into 37mm photoport)
- Delta Optics Series (with 37mm photoport)



Manufacturer: Optem / QIOptiq




oem/b-clamp1.jpg
B-clamp: Leica / Nikon clamp for 38mm photoport
Price: $126.00

Fits LEICA / WILD models:
- Inverted : DMIL, Diavert, Fluovert, Labovert, Metallovert (with 38mm)
- Upright : Aristomet, Aristoplan, Dialux, Diaplan, Ergolux, Laborlux,
    Metalux, Ortholux, Orthoplan (with 38mm ISO port)
- Stereo: MS5, MZ6, MZ8, MZ9.5, MZ12, MZAPO (all with 38mm port)
    GZ6 (with phototube#13410302)
- WILD Stereo : M3, M5, M7, M8, M10 (all with 38mm ISO port)
- WILD Macroscope : M420 (with 38mm ISO port)

Fits NIKON models:
- Inverted : Diaphot 200/300, TS100-F (with 38mm ISO photoport)
- Upright : Alphaphot-2, Eclipse (with YT-Tube# 92306), Labophot-2,
    Optiphot-2, Optiphot 100S, 150, 200, 300 (all with 38mm)
- Stereo: MS5, MZ6, MZ8, MZ9.5, MZ12, MZAPO (all with 38mm port)
    GZ6 (with phototube#13410302)
- Metallurgical : Epiphot 200/300, MM-40, MM-60 (all w/ 38mm port)



Manufacturer: Optem / QIOptiq




oem/c-clamp1.jpg
C-clamp: Mitutoyo clamp for photoport
Price: $225.00

Fits MITUTOYO models:
- Upright : Finescope 60 (non-tilting head)



Manufacturer: Optem / QIOptiq




oem/d-clamp1.jpg
D-clamp: Nikon clamp for 30mm phototube
Price: $155.00

Fits NIKON models:
- Upright : Eclipse Series (w/ phototube# 92021 for 30mm)
- Stereo: SMZ-800 (w/ phototube #92021 for 30mm eyepiece)



Manufacturer: Optem / QIOptiq




oem/e-clamp1.jpg
E-clamp: Mitutoyo clamp for photoport
Price: $225.00

Fits MITUTOYO models:
- Upright : FS110



Manufacturer: Optem / QIOptiq




oem/f-clamp1.jpg
F-clamp: F-clamp: Nikon clamp for 23mm photoport
Price: $95.00

Fits NIKON models:
- Upright : Alphaphot-2, Labophot-2, Optiphot-2 (all w/phototube),
    Multi-Image module,Microphot (w /phototube#79429)
- Stereo: SMZ-U, SMZ-10A (all w/phototube), SMZ-2T
- Inverted : Diaphot 200/300 (w/side port phototube), Diaphot TMD,
    Epiphot TME, TMS-F
- Measuring : MM-11C, MM-11U, MM-22, MM-22U, MM-40, MM-60
    (all w/ phototube)



Manufacturer: Optem / QIOptiq




oem/g-clamp1.jpg
G-clamp: G-clamp: Olympus clamp with U-SPT removed
Price: $166.00

Fits OLYMPUS models:
- Upright : AX Provis series, BX series, BX2 series, CX series,
    CX2 series, MX series (all w/ U-SPT tube removed),
    BX2 U-DPT Double Port (back port only, front use H)
    Multi-Image module,Microphot (w /phototube#79429)
- Stereo: SZX series (all w/ U-SPT phototube removed)



Manufacturer: Optem / QIOptiq




oem/h-clamp1.jpg
H-clamp: Olympus clamp for standard photoport
(and models with U-SPT tube installed)

Price: $130.00

Fits OLYMPUS models:
- Inverted : IMT-2 (w/sideport or trinocular head),
    IX series (w/ IX-SPT sideport tube or trinocular)
- Upright : AX series, BX series, BX2 series, CX series,
    MX series (all w/ U-SPT phototube installed)
    BH2(BHS,BHT,BHTU,BHM), Vanox (w/ AH2-ADF)
- Stereo: SZ series (SZ-TRU phototube), SZH, SZX (w/ U-SPT)



Manufacturer: Optem / QIOptiq




oem/j-clamp1.jpg
J-clamp: 25mm industry standard photoport
Price: $95.00

Fits LEICA / WILD models:
- WILD upright : old M11, M20, M40, M50

Fits OLYMPUS older models:
- Inverted : CK series
- Upright : BH series, CH series
- Stereo: SZ3-TR series, XTR

Fits ZEISS older models:
- Inverted : Standard Trinocular (Zeiss# 473026, 473028, 473029)
- Upright : IM series

Use for all standard 25mm phototube applications



Manufacturer: Optem / QIOptiq




oem/k-clamp1.jpg
K-clamp: Zeiss clamp
Price: $139.00

Fits ZEISS models:
- Inverted : Axiovert 100,135,135M, 200 (not for w/SC38 video coupler)
    IM series (w/ new std trinocular tube Zeiss# 452902)
- Upright : Axiolab, Axiophot-2, Axioplan-2, Axioskop-2, Axiostar,
    Axiotech, STD 25 ICS, KF2 ICS,
    New Standard Trinocular tube (Zeiss# 452902) series, BX
- Stereo: Stemi DRC (w/ 455005 phototube), Stemi-2000C,
    Stemi-2000CS, SV6, SV11



Manufacturer: Optem / QIOptiq




oem/l-clamp1.jpg
L-clamp: Zeiss clamp for older Axio models
Price: $139.00

Fits ZEISS models:
- Inverted : Axiovert 10, 35, 35M, 405M
- Upright : Axiophot, Axioplan, Axioskop, Axiotron



Manufacturer: Optem / QIOptiq




oem/v-clamp1.jpg
V-clamp: Leica clamp for HC Optics Series
Price: $175.00

Fits LEICA models:
- Compound : DM L, DM R, DM IR, DM IL (all w/ HC Optics Series)



Manufacturer: Optem / QIOptiq



: PDF DATA SHEET:

Camera Adapter .PDF
Clamp Schematics .PDF
