LaboMed CXR2 Fluorescence Models

GENERAL FEATURES
PDF DATA SHEET

� Fluorescence objective lenses
4/10/40/100 (spring,oil)

� Binocular / Trinocular models

� EPI fluorescence attachment with
HBO 100w mercury lamp
2 filter / 3 position selector
110v or 220v mercury supply

� ABBE condenser NA 1.25
- Aspherical lense
- Iris diaphragm and blue filter

� Quadruple Reverse angle nosepiece

� Universal power (110-240vac) UL / CE
12v 20w halogen illumination

� Mechanical stage 150mm x 135mm
XY travel 76mm x 50mm (ball-bearing)

FLC2 Spec Sheet

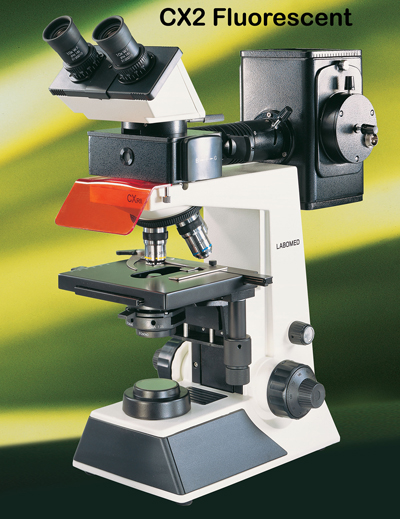

CXR2 Fluorescence models:

The CXR2 fluorescence microscope provides 2 excitation filters standard; Blue (EX-490), Green (EX-545). Color separation Prism comprised of Blue light (BA530), Green light (BA590), and a central ordinary light position.
Excitation light spectrum range : 350nm � 580nm
Fluorescent light spectrum range : 420nm � 650nm

Models

3126010: C-mount coupler for �"� sensor

Price: $134.00

3126015: C-mount coupler for 1/3" sensor

Price: $130.00

� CXR2 Accessories : Accessories and parts for CXR2 series microscopes
� CXR2 Clinical: Cost effective general purpose microscopes
� DigiPLUS Binocular CXR2 model: with built-in USB2.0 camera Live/still image display/capture 720 x 480 NTSC
� CXR3 Research: Infinity corrected optical system models
� CXR3 Fluorescence: EPI Fluorescence research microscope; infinity corrected optics CXR3 models
� Digi2/Digi3 Binocular CXR3 models with built-in USB2.0 CMOS camera 1.3MPixel (Digi2) or 3.1 MPixel (Digi3)
� CXR4 Ergonomic Research: CXR3 infinity optics with ergonomic tilting widefield binocular head, 10x/22 eyepieces
� Digital Cameras : Various model Lumenera cameras
